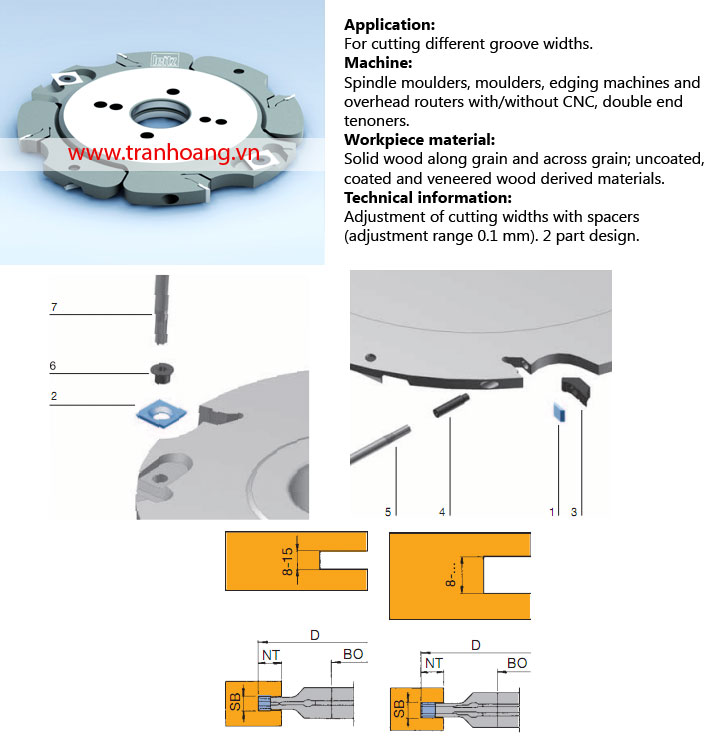

2 part; SB 8.0 - 15.4 mm
SW 501-1-01
|
D
mm
|
SB
mm
|
BO
mm
|
NT
mm
|
Z
|
n
min-1
|
ID
|
|
|
150
|
8.0 - 15.4
|
30
|
20
|
2/2
|
5200 - 10100
|
128104
|
|
|
180
|
8.0 - 15.4
|
30
|
35
|
2/2
|
4300 - 8400
|
128105
|
|
|
200
|
8.0 - 15.4
|
30
|
45
|
2/2
|
3900 - 7600
|
128106
|
|
Extension part SB 7.7 mm
WW 200-1-NN
|
D
mm
|
SB
mm
|
BO
mm
|
BOmax
mm
|
Z
|
n
min-1
|
ID
|
|
|
150
|
7.7
|
30
|
50
|
2
|
5200 - 10100
|
128134
|
|
|
180
|
7.7
|
30
|
50
|
2
|
4300 - 8400
|
128135
|
|
|
200
|
7.7
|
30
|
50
|
2
|
3900 - 7600
|
128136
|
|
Spare knives
|
Part-no.
|
BEZ
|
ABM
mm
|
QAL
|
VE
PCS
|
ID
|
|
|
1
|
Turnblade knife
|
7.7x8x1.5
|
HW-05
|
10
|
005053
|
|
|
2
|
Turnblade spur VS1
|
14x14x2
|
HW-F
|
10
|
005099
|
|
Spare parts
|
Part-no.
|
BEZ
|
ABM
mm
|
ID
|
|
|
3
|
Clamping wedge
|
7x18.75x8.27
|
009673
|
|
|
4
|
Allen screw with shank, Torx® 15
|
M5x20
|
007380
|
|
|
5
|
Torx® key
|
Torx® 15
|
117507
|
|
|
6
|
Countersink screw, Torx® 20
|
M6x0,5x4,9
|
006243
|
|
|
7
|
Torx® key
|
Torx® 20
|
117503
|
|
|
|
Setting gauge
|
0,3/0,8
|
005374
|
|
|
