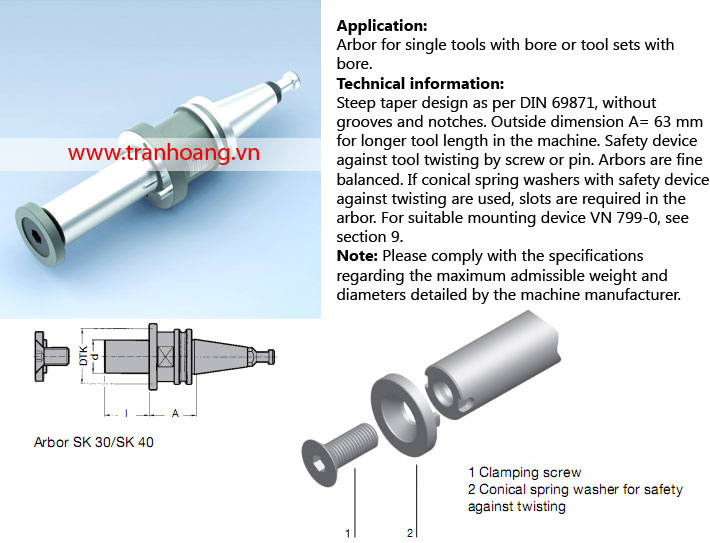

SK 30, A = 63 mm
TI 501-0-01
| Machine |
l
mm |
d
mm |
TK
mm |
Weight
kg |
ID |
|
| MAKA, Weeke, |
70 |
20 |
32 |
1.3 |
042818 |
|
| Alberti |
80 |
30 |
48 |
1.6 |
042822 |
|
| |
70 |
20 |
32 |
1.3 |
041376 |
|
| |
80 |
30 |
48 |
1.6 |
041380 |
|
SK 40, A = 63 mm
TI 501-0-01
| Machine |
l
mm |
d
mm |
TK
mm |
Weight
kg |
ID |
|
| MAKA, Reichenbacher |
70 |
20 |
32 |
1.9 |
042825 |
|
| |
80 |
30 |
48 |
2.2 |
042829 |
|
Sales unit consists of arbor with draw bolt, clamping screw and conical spring washer (flat design), without spacers.
Spare parts
| BEZ |
BEM |
ABM
mm |
ID |
|
| Washer with safety device against twisting, M10 |
for d = 20 |
20/35x16x10.5 |
006768 |
|
| Washer with safety device against twisting, M16 |
for d = 30 |
30/45x16x16.5 |
006769 |
|
| Locking nut with Balluff chip |
|
SK 40 |
081601 |
|
Suitable spacers, see section 9.3. |
