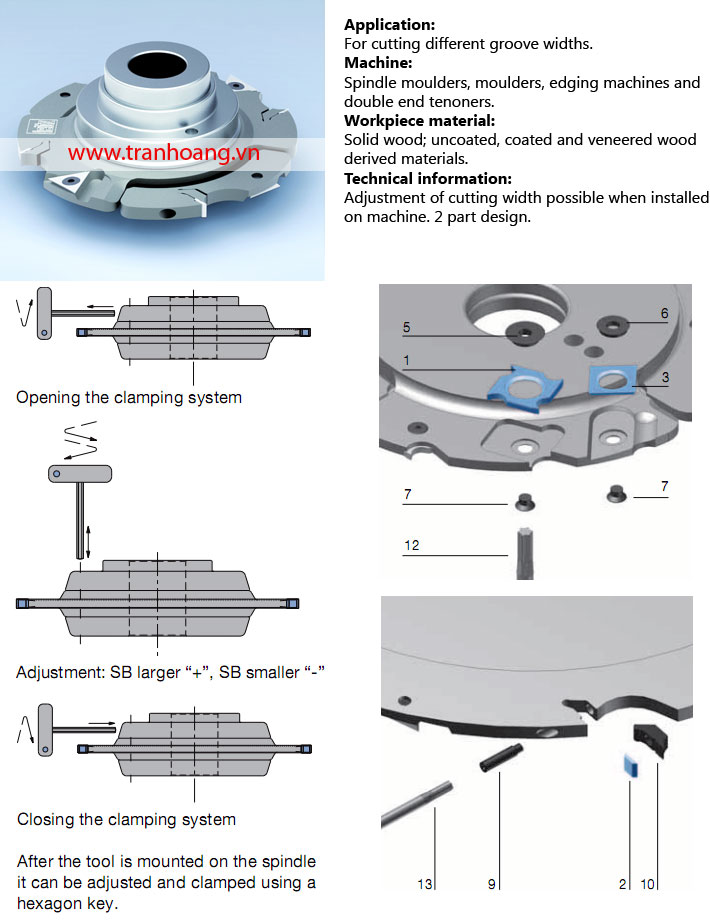

Mounted on sleeve; SB 4.0 - 15.0 mm
SW 502-1-01
|
D
mm
|
SB
mm
|
BO
mm
|
BOmax
mm
|
NT
mm
|
Z
|
n
min-1
|
ID
|
|
|
180
|
4.0 - 7.5
|
30
|
35
|
40
|
2/2
|
4300 - 8400
|
128154
|
|
|
180
|
8.0 - 15.0
|
30
|
35
|
40
|
2/2
|
4300 - 8400
|
128155
|
|
|
180
|
4.0 - 7.8
|
40
|
50
|
35
|
2/2
|
4300 - 8400
|
128156
|
|
|
180
|
8.0 - 15.0
|
40
|
50
|
35
|
2/2
|
4300 - 8400
|
128157
|
|
Spare knives
|
Part-no.
|
BEZ
|
ABM
mm
|
QAL
|
VE
PCS
|
ID
|
|
|
1
|
Turnblade knife
|
18x18x1.95
|
HW
|
10
|
005114
|
|
|
2
|
Turnblade knife
|
7.7x8x1.5
|
HW-05
|
10
|
005053
|
|
|
3
|
Turnblade spur VS4
|
14x14x1.2
|
HW
|
10
|
005130
|
|
|
4
|
Turnblade spur VS2
|
19x19x2
|
HW-F
|
10
|
005115
|
|
Spare parts
|
Part-no.
|
BEZ
|
ABM
mm
|
ID
|
|
|
5
|
Special nut for WPL
|
M 11,9/2,20
|
005653
|
|
|
6
|
Special nut for VS
|
M9,9/1,60
|
005654
|
|
|
7
|
Countersink screw, Torx® 9
|
M4x0,5x3,2
|
006057
|
|
|
8
|
Countersink screw, Torx® 20
|
M6x0,5x4,9
|
006243
|
|
|
9
|
Allen screw with shank, Torx® 15
|
M5x20
|
007380
|
|
|
10
|
Clamping wedge
|
7x18.75x8.27
|
009673
|
|
|
11
|
Torx® key
|
Torx® 20
|
117503
|
|
|
12
|
Torx® key
|
Torx® 9
|
005463
|
|
|
13
|
Torx® key
|
Torx® 15
|
117507
|
|
|
|
Setting gauge
|
0,3/0,8
|
005374
|
|
|
