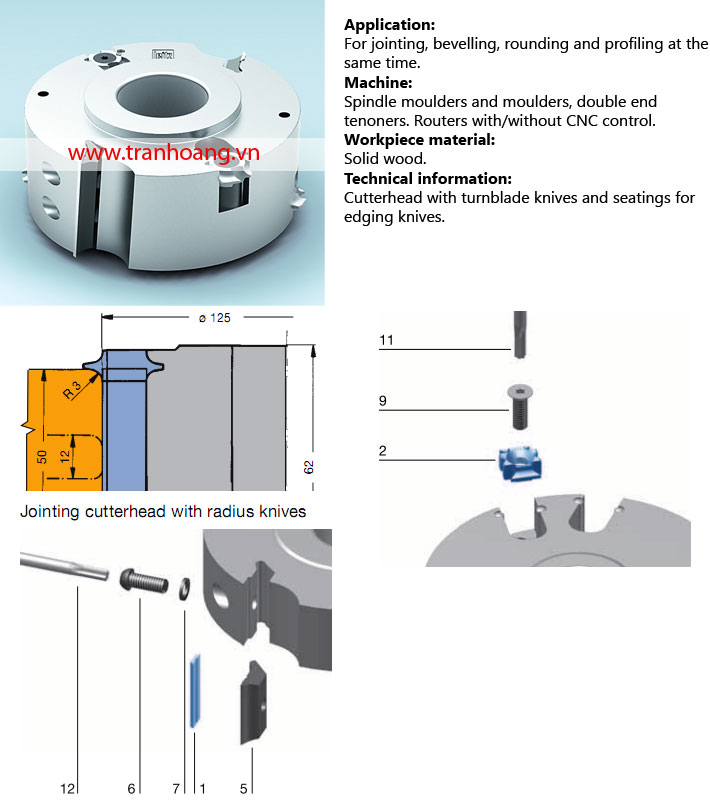

Jointing cutterhead TH321
Giá: Liên hệ

Thông số kỹ thuật:
Cutterhead with seatings for edging knives
WW 211-1

D
mm 		SB
mm

BO
mm

Z

 KM
PCS

n
min-1

QAL

 ID

85

 50

 30

 2

 4

 9100 - 15700

 HW

 029069


100

 120

 30

 2

 4

 7600 - 13300

 HW

 029070


125

 50

 30

 2

 4

 6200 - 10600

 HW

 029071


125

 100

 30

 2

 4

 6200 - 10600

 HW

 029072


Spare knives

Part-no.
 BEZ

 ABM
mm

R
mm

QAL

 VE
PCS

ID

1

 Turnblade knife

 50x8x1.5



 HW-30F

 10

 005075


1

 Turnblade knife

 100x8x1.5



 HW-30F



 005184


1

 Turnblade knife

 120x8x1.5



 HW-30F



 005185


2

 Edging knife 45°

 KM 21/0

 45°

 HW-F



 008292


2

 Edging knife R1.5

 KM 22/4

 1.5

 HW-F



 008295


2

 Edging knife R2

 KM 22/3

 2

 HW-F



 008309


2

 Edging knife

 KM 22/0

 3

 HW-F



 008293


2

 Edging knife R5

 KM 24/0

 5

 HW-F



 008305


2

 Edging knife R5

 KM 24/1

 5

 HW-F



 008306


Spare parts

Part-no.
 BEZ

 ABM
mm

ID

5

 Clamping wedge

 48x18.75x8.27

 009677


6

 Clamping screw, Torx® 25

 M6x18,5

 007818


7

 Washer

 9/6.2x1.2

 006753


9

 Countersink screw, Torx® 20

 M6x30

 006089


11

 Torx® key

 Torx® 20

 117503


12

 Torx® key

 Torx® 25

 117504




 Setting gauge for knives

 1.0

 005350


1

 Spacer

 13/6.1x0.1

 028034


1

 Spacer

 13/6.1x0.3

 028035


1

 Spacer

 13/6.1x0.5

 028036


1

 Spacer

 13/6.1x1

 028037


1

 Spacer

 13/6.1x3

 028040


1

 Spacer

 13/6.1x5

 028042
