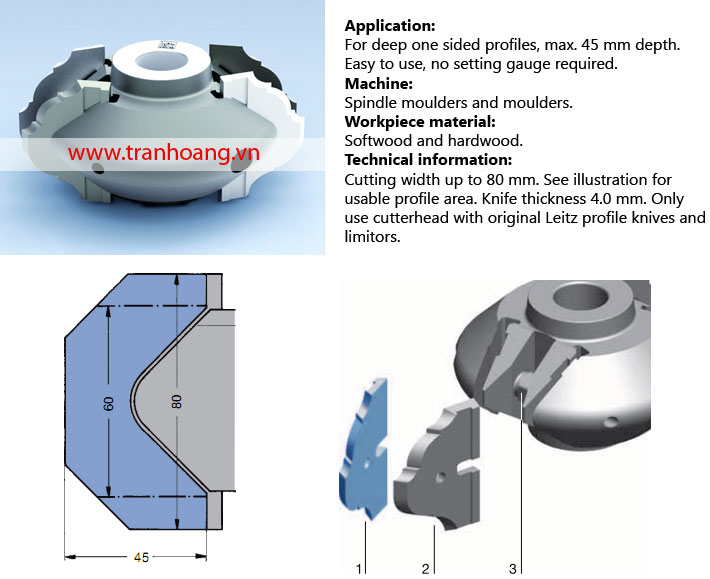

Profile cutterhead, steel tool body TH358
Giá: Liên hệ

Thông số kỹ thuật:
MAN feed for symmetric profiles SB 60 - 80 mm
WM 520-1
D
mm 		SB
mm

BO
mm

BOmax
mm

HD
mm

PTmax
mm

Z

n
min-1

ID

180

 60 - 80

 30

 40

 80

 45

 2

 4500 - 6000

 026651



Sales unit incl. key, but without knives and limitors.
Note: State direction of rotation when ordering knives.

Spare knives

Part-no.
 		BEZ

ABM
mm

QAL

ID

1

 Blank Knife

 60x60x6

 HS

 007278


1

 Blank Knife

 80x60x6

 HS

 007279


2

 Limitor blank

 58x59.2x6

 SP

 005594


2

 Limitor blank

 78x59.2x6

 SP

 005595


Spare parts

Part-no.
 		BEZ

ABM
mm

ID

3

 Clamping screw

 M16x1.5x36 LL/RL

 005958




 Key

 SW 17

 005456


HS-special profiles and SP-profile limitors

PGI

 Set of profile knives

 SB=60mm


PGII

 Set of profile knives

 SB=60mm


PGI

 Set of profile knives

 SB=80mm


PGII

 Set of profile knives

 SB=80mm


Set consists of :



 2 HS-Profile knives
2 SP-Limitors


Profiles knives and limitors are produced to customer's profile.
Only use this cutterhead with original Leitz profile knives and limitors!
