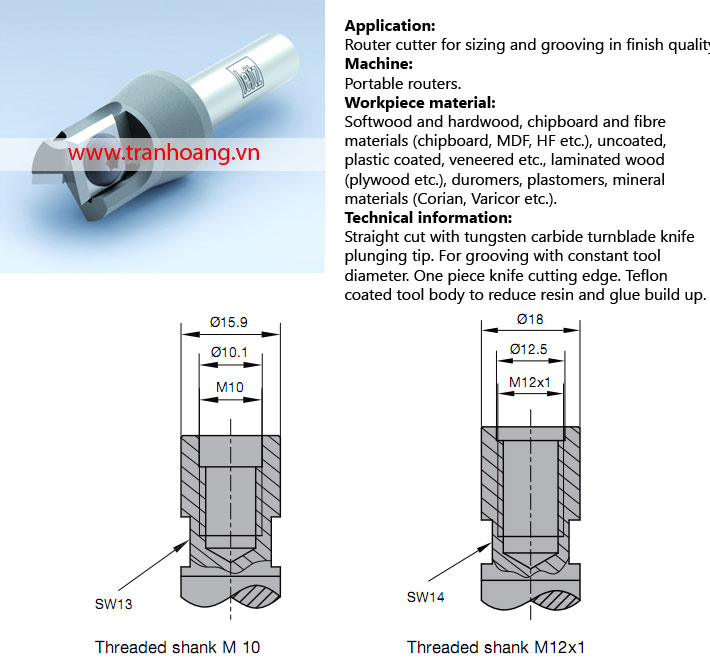

Router cutter in turnblade design TH375
Giá: Liên hệ

Thông số kỹ thuật:
HW, Z 1+1, with plunging tip
WL 101-1

D
mm		 GL
mm		 NL
mm		 S
mm		 DRI ID
16 70 30 8x30 RL 071050
18 70 30 8x30 RL 071051
20 54 12 8x25 RL 040824
16 64 30 M10 RL 040911
20 64 30 M10 RL 040915
16 64 30 M12x1 RL 040917
18 64 30 M12x1 RL 040919
20 64 30 M12x1 RL 040921
RPM:
n = 16000 - 18000 min-1

Spare knives Close

BEZ Knife ABM
mm		 QAL for D
mm		 VE
PCS		 ID
Turnblade knife Plunging tip 7.6x12x1.5 HW-05 16 - 18 10 005080
Turnblade knife Plunging tip 9x12x1.5 HW-05 20 - 24 10 005158
Turnblade knife Peripheral tip 12x12x1.5 HW-05   10 005081
Turnblade knife Peripheral tip 30x12x1.5 HW-05   10 005161
Spare parts Close

BEZ Knife ABM
mm		 for D
mm		 ID
Screw Plunging tip M3,5x4 (head D7) 16 - 20 006068
Screw Peripheral tip M3,5x4 (head D9) 16 - 20 006226
Torx® key   Torx® 15   005457
