Edge trimming cutter TH381
Giá: Liên hệ

Thông số kỹ thuật:

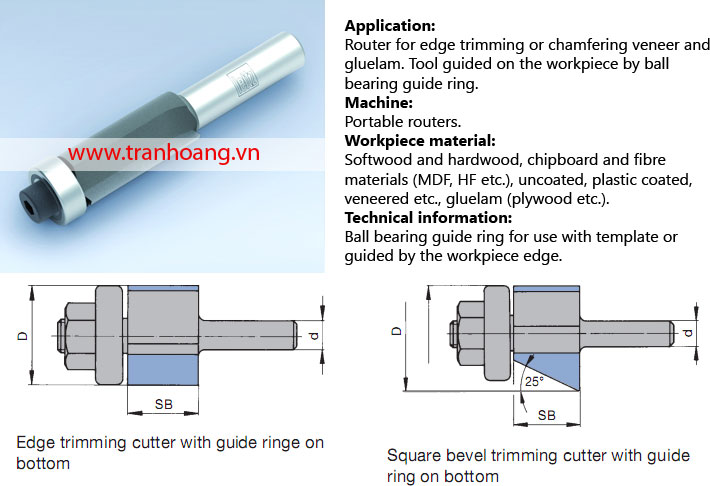

Edge trimming cutter, HW, Z 2 with guide ring on bottom
WO 203-1, WO 203-1-01

D
mm		 SB
mm		 S
mm		 DRI ID
21 15 6x30 RL 039440
12.7 25 8x30 RL 072509
RPM:
n = 18000 - 27000 min-1

Spare parts

BEZ BEM ABM
mm		 ID
Ball bearing to ID 072509 4.76x12.7x4.97 008088
Ball bearing guide to ID 039440 21x7.2x15.88 072157
Square bevel trimming cutter, HW, Z 1+1/bevel 45°
WO 314-1-01

D
mm		 SB
mm		 S
mm		 FAW DRI ID
24/18 11 8x30 45° RL 070477
RPM:
n = 18000 - 27000 min-1

Spare parts

BEZ BEM ABM
mm		 ID
Ball bearing guide to ID 070477 18x8x15.88 070828
