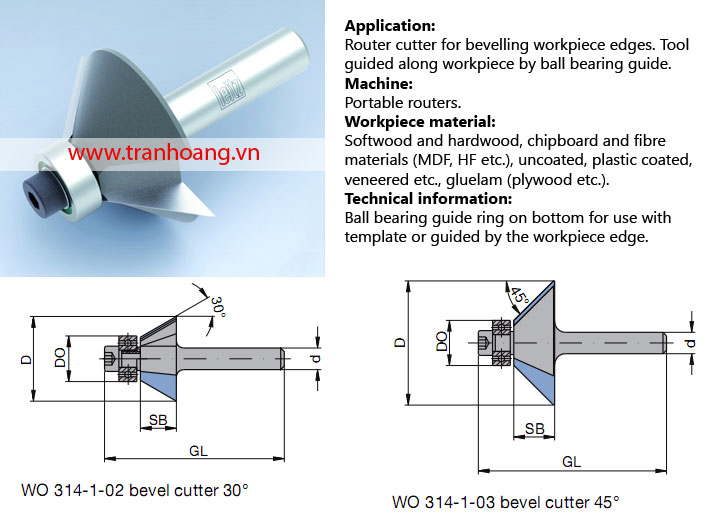

Bevel cutter, HW, Z 2, shank 6 / 8 mm
WO 314-1-02, WO 314-1-03
D
mm |
D0
mm |
GL
mm |
SB
mm |
FAW |
S
mm |
DRI |
ID |
|
| 24 |
12.7 |
50 |
10 |
30° |
6x30 |
RL |
072504 |
|
| 20 |
15.88 |
54 |
14 |
10° |
8x30 |
RL |
072503 |
|
| 25.7 |
12.7 |
70 |
25.1 |
15° |
8x30 |
RL |
072522 |
|
| 24 |
12.7 |
50 |
10 |
30° |
8x30 |
RL |
072505 |
|
| 38.5 |
12.7 |
64.5 |
23 |
30° |
8x30 |
RL |
072523 |
|
| 36 |
12.7 |
50 |
11.5 |
45° |
8x30 |
RL |
072507 |
|
RPM:
n = 18000 - 27000 min-1
Spare parts
| BEZ |
ABM
mm |
for D0
mm |
ID |
|
| Ball bearing |
4.76x12.7x4.97 |
12.7 |
008088 |
|
| Ball bearing |
6.35x15.88x5 |
15.88 |
008081 |
|
| Screw with ISK |
M4x10 |
|
005846 |
|
Bevel cutter, HW, Z 2, shank 12 mm
WO 314-1-02, WO 314-1-03
D
mm |
D0
mm |
GL
mm |
SB
mm |
FAW |
S
mm |
DRI |
ID |
|
| 44 |
12.7 |
78 |
30 |
30° |
12x40 |
RL |
072516 |
|
| 55 |
12.7 |
74 |
26 |
45° |
12x40 |
RL |
072517 |
|
RPM:
n = 18000 - 27000 min-1
Spare parts
| BEZ |
ABM
mm |
for D0
mm |
ID |
|
| Ball bearing |
4.76x12.7x4.97 |
12.7 |
008088 |
|
| Screw with ISK |
M4x10 |
|
005846 |
|
|
