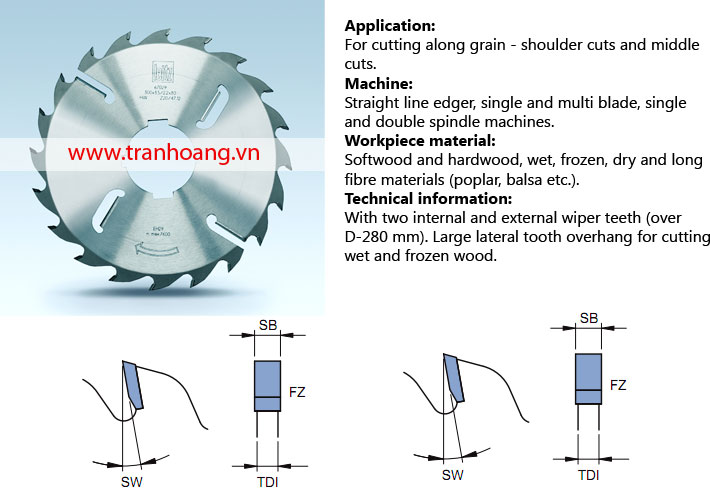

Circular sawblades with wiper teeth with internal and external wiper teeth TH26
Giá: Liên hệ

Thông số kỹ thuật:
Square cuts and shoulder cuts
WK 100-2-43

D
mm		 SB
mm		 TDI
mm		 BO
mm		 BOmax
mm		 DKN
mm		 FLDmax
mm		 Z ZF SW
Degree		 WSS ID
250 4.4 2.8 30 80   130 18 FZ 25   067000
300 5.0 3.2 30 80   130 20 FZ 25   067001
300 5.0 3.2 80   23/90 110 20 FZ 25   067003
350 5.0 3.2 30 100   130 24 FZ 25   067004
380 5.0 3.2 30 100   140 24 FZ 25   067044
380 5.0 3.2 80     140 24 FZ 25   067045
400 5.0 3.2 30 120   150 28 FZ 25   067005
450 5.0 3.2 30 120   160 24 FZ 25   067026

Middle cuts
WK 100-2-18, WK 100-2-43

D
mm		 SB
mm		 TDI
mm		 BO
mm		 BOmax
mm		 DKN
mm		 FLDmax
mm		 Z ZF SW
Degree		 WSS ID
250 3.5 2.2 30 80   130 18 FZ 25   067006
300 3.5 2.2 30 80   110 20 FZ 25   067024
300 3.5 2.2 70   21/83 110 20 FZ 25   067008
300 3.5 2.2 80   23/90
13/89
13/89		 110 20 FZ 25   067029
300 3.5 2.2 80   13/89
13/89		 140 20 FZ 25   067046
350 4.0 2.8 30 100   130 24 FZ 25   067015
380 4.0 2.8 30 100   140 24 FZ 25   067047
380 4.0 2.8 80   19/89
19/89		 140 24 FZ 25   067048
400 4.0 2.8 30 120   140 20 FZ 25   067049
400 4.0 2.8 30 120   150 28 FZ 25   067030
450 4.4 3.0 30 120   160 24 FZ 25   067031
