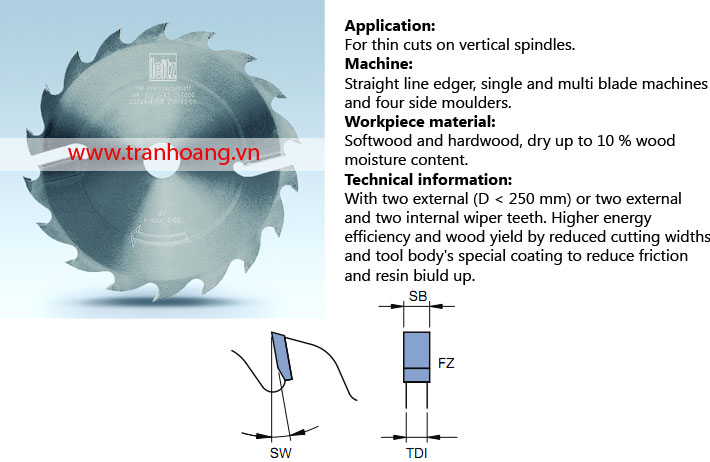

Lamellae cuts - vertical spindle TH29
Giá: Liên hệ

Thông số kỹ thuật:
Circular sawblades with external and internal wiper teeth, coated
WK 100-2-43

D
mm		 SB
mm		 TDI
mm		 BO
mm		 BOmax
mm		 NLA
mm		 FLDmax
mm		 Z ZF SW
Degree		 WSS ID
250 2.4 1.6 30 80 3/10/75 100 12 FZ 25 067041
250 2.5 1.8 60 80 3/10/75 120 40 FZ 20 067032
250 1.7 1.5 65 80 3/11/80 100 28 FZ 20 067055
250 2.4 1.6 70 80   100 24 FZ 20 067056
270 2.4 1.6 60 80 3/10/75 120 28 FZ 20 067033
300 2.4 1.6 60 80 3/10/75 120 24 FZ 20 067218
325 2.4 1.6 60 80 3/10/75 130 28 FZ 20 067042
