Sizing cuts TH52
Giá: Liên hệ

Thông số kỹ thuật:

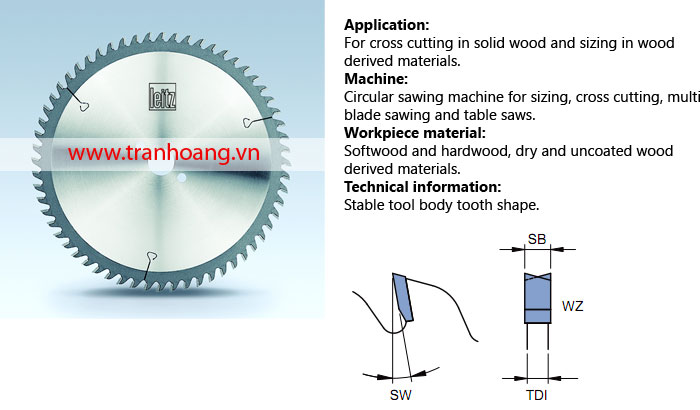

Circular sawblades
WK 850-2, WK 850-2-01, WK 850-2-02, WK 850-2-03, WK 850-2-10, WK 850-3-02, WK 150-2-03, WK 150-2-07

D
mm		 SB
mm		 TDI
mm		 BO
mm/in		 NLA
mm		 Z ZF SW
Degree		 WSS ID

150 3,5 2,5 30 KNL 24 WZ 10   058050
150 3,2 2,2 30   48 WZ 10   058300
150 2,4 1,6 30   48 WZ 10   058450
180 3,0 2,0 30   24 WZ 15   057980
180 3,5 2,5 30 KNL 30 WZ 10   058052
180 2,4 1,6 30   30 WZ 15   057800
180 3,2 2,2 30   58 WZ 10   058301
180 2,4 1,6 30   58 WZ 10   058451
200 3,0 2,0 30   24 WZ 15   057981
200 3,2 2,2 30 KNL 34 WZ 10   058053
200 2,4 1,6 30   34 WZ 15   057801
200 3,2 2,2 30   48 WZ 10   058380
200 3.2 2.2 30   64 WZ 10 058302
250 3,2 2,2 15,88/5/8''   40 WZ 10   058054
250 3,2 2,2 15,88/5/8''   60 WZ 10   058381
250 3,2 2,2 15,88/5/8''   80 WZ 10   058303
250 3,2 2,2 30   30 WZ 10   057982
250 3.2 2.2 30 KNL 40 WZ 10 058055
250 3.2 2.2 30 KNL 80 WZ 10 058304
300 3,2 2,2 15,88/5/8''   72 WZ 10   058383
300 3,2 2,2 15,88/5/8''   96 WZ 10   058310
300 2.4 1.6 30 KNL 48 WZ 15 057803
300 3.2 2.2 30 KNL 60 WZ 10 058204
300 3.2 2.2 30 KNL 72 WZ 10 058384
300 3.2 2.2 30 KNL 96 WZ 10 058311
350 3.2 2.2 30 KNL 54 WZ 10 058059
350 3.2 2.2 30 KNL 72 WZ 10 058206
350 3.2 2.2 30 KNL 84 WZ 10 058386
350 3.2 2.2 30 KNL 108 WZ 10 058308
400 3.8 2.8 30 KNL 60 WZ 10 058061
450 3.8 2.8 30 KNL 66 WZ 10 058062
500 3,8 2,8 30 KNL 72 WZ 10   058063
500 4,2 3,2 30 KNL 84 WZ 10   058075
