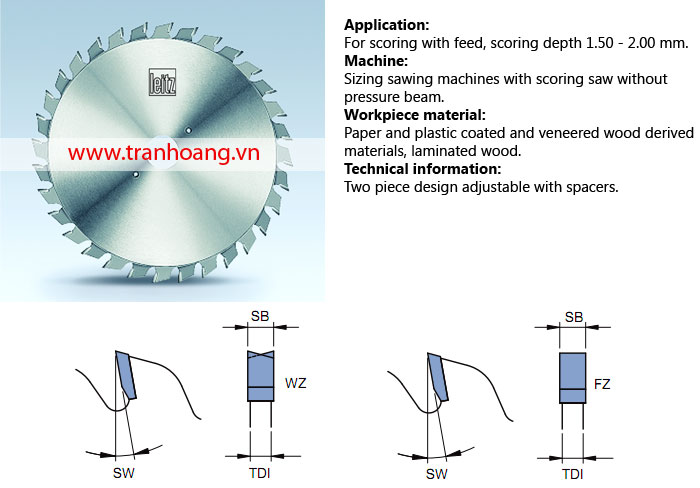

Scoring sawblades, adjustable TH64
Giá: Liên hệ

Thông số kỹ thuật:
Circular sawblade set - adjustable with spacers
SK 199-2

Machine D
mm		 SB
mm		 BO
mm		 Z ZF SW
Degree		 nmax
min-1		 WSS ID
Putsch-Meniconi 70 2.8 - 3.6 20 8+8 WZ 8 32 000 061460
Robland 80 2.8 - 3.6 20 10+10 FZ 8 28 200 061441
Schelling 100 2.8 - 3.6 20 10+10 FZ 8 22 600 061409
Altendorf
Martin
Mrozek
Panhans		 100 2.8 - 3.6 22 10+10 FZ 8 22 600 061400
SCM 120 2.8 - 3.6 20 12+12 FZ 12 18 900 061402
Altendorf
Martin
Mrozek		 120 2.8 - 3.6 22 12+12 FZ 12 18 900 061401
Martin
(electr. SB adjustment)		 120 2.8 - 3.6 22 12+12 FZ 12 18 900 061456
Felder
SCM		 125 2.8 - 3.6 20 12+12 FZ 12 18 300 061449
Giben
Mayer-Lombach		 125 4.0 - 4.8 45 20+20 FZ 10 18 300 061407
Bäuerle 160 2.8 - 3.6 30 16+16 FZ 12 14 300 061408
Schelling 180 4.0 - 4.8 20 20+20 FZ 12 12 700 061447
Kölle 180 3.0 - 3.8 30 18+18 FZ 12 12 700 061406
SCM 200 4.3 - 5.2 20 30+30 FZ 10 11 400 061414
Schelling 220 4.0 - 4.8 20 24+24 FZ 12 10 400 061448
