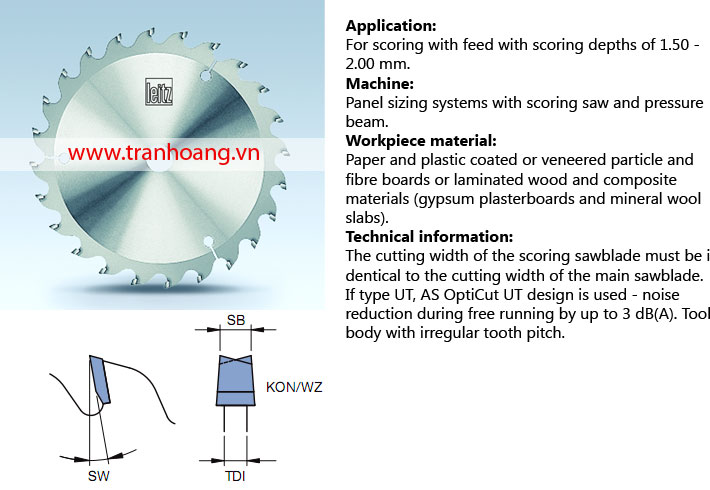

Scoring sawblades TH79
Giá: Liên hệ

Thông số kỹ thuật:
Circular sawblades
WK 856-2, WK 856-2-01, WK 856-2-05

Machine D
mm		 SB
mm		 TDI
mm		 BO
mm		 NLA
mm		 Z ZF SW
Degree		 Type nmax
min-1		 WSS ID
Panhans 125 3.2 2.5 20   24 KON/WZ 5   18 300 061470
  125 3.2 2.5 22   24 KON/WZ 5   18 300 061507
Martin 125 4.4 3.5 22   24 KON/WZ 5   18 300 061474
Giben
Homag
Mayer		 125 4.4 3.5 45   20 KON/WZ 5   18 300 061485
Scheer 140 3.2 2.5 16 1/6/33 32 KON/WZ 5   16 300 061538
  150 3.2 2.5 20   24 KON/WZ 5   15 200 061471
Schelling 150 4.4 3.5 20   24 KON/WZ 5   15 200 061477
SCM 150 3.2 2.5 30   24 KON/WZ 5   15 200 061472
Irion
Mayer
SCM
Steton		 150 4.4 3.5 30   24 KON/WZ 5   15 200 061486
Homag 150 4.4 3.5 45   24 KON/WZ 5   15 200 061530
Langzauner 160 3.2 2.5 20   32 KON/WZ 5   14 300 061543
Steton 160 4.4 3.5 30   36 KON/WZ 5   14 300 061495
Giben 160 4.4 3.2 45 3/11/70 28 KON/WZ 5   14 300 061509
Gabbiani
SCM		 160 4.4 3.5 55 3/7/66 36 KON/WZ 5   14 300 061487
Scheer 180 3.2 2.5 16 1/6/33 36 KON/WZ 5   12 700 061473
Anthon
Höfer
Schelling		 180 4.4 3.5 20   30 KON/WZ 5   12 700 061478
Anthon 180 6.0 4.0 20   30 KON/WZ 5   12 700 061520
Höfer 180 3.2 2.5 20   36 KON/WZ 5   12 700 061493
Homag 180 4.4 3.5 45   30 KON/WZ 5   12 700 061544
Holzma 180 4.4 3.5 45   36 KON/WZ 5 UT 12 700 061553
Giben 180 4.5 3.2 50 3/13/80 36 KON/WZ 5   12 700 061558
Giben 180 5.0 3.5 55   30 KON/WZ 5   12 700 061500
Schelling 200 4.3 4.5 20   24 KON/WZ 5   11 400 061522
Schelling 200 5.2 3.5 20   24 KON/WZ 5   11 400 061501
Höfer
Langzauner
Schelling		 200 4.4 3.5 20   34 KON/WZ 5   11 400 061479
Schelling 200 5.9 3.5 20   34 KON/WZ 5   11 400 061571
Schelling 200 6.2 4.5 20   36 KON/WZ 5   11 400 061546
Scheer 200 4.4 3.5 30   34 KON/WZ 5   11 400 061489
Scheer 200 3.2 2.5 30   60 KON/WZ 5   11 400 061549
Holzma 200 4.4 3.5 45   34 KON/WZ 5   11 400 061490
Holzma 200 5.8 4.6 45   34 KON/WZ 5   11 400 061499
Holzma 200 6.2 4.2 45   36 KON/WZ 5   11 400 061547
Giben 200 4.5 3.2 50 3/13/80 44 KON/WZ 5 UT 11 400 061559
Selco 200 4.4 3.5 65 2/9/100
2/9/110		 36 KON/WZ 5   11 400 061505
Selco 200 4.8 3.5 65 2/9/110 36 KON/WZ 5   11 400 061528
Giben 215 4.4 3.2 50 3/15/80 42 KON/WZ 5   10 600 061508
Schelling 220 6.5 4.5 20   36 KON/WZ 5   10 400 061560
Giben 250 4.5 3.2 50 3/13/80 44 KON/WZ 5   9 100 061570
Holzma 280 4.8 3.5 45   48 KON/WZ 5   8 100 061564
Holzma 280 4.8 3.5 45   72 KON/WZ 5   8 100 061563
Schelling 300 4.4 3.2 30   48 KON/WZ 5   7 600 061555
Giben 300 4.4 3.2 50 3/15/80 48 KON/WZ 5   7 600 061510
Selco 300 4.4 3.2 65 2/9/100 48 KON/WZ 5   7 600 061575
Selco 300 4.4 3.2 65 2/9/110 48 KON/WZ 5   7 600 061576
Selco 300 4.8 3.5 65 2/9/110 48 KON/WZ 5   7 600 061565
Selco 300 4.4 3.5 65 2/9/100
2/9/110		 72 KON/WZ 5   7 600 061529
