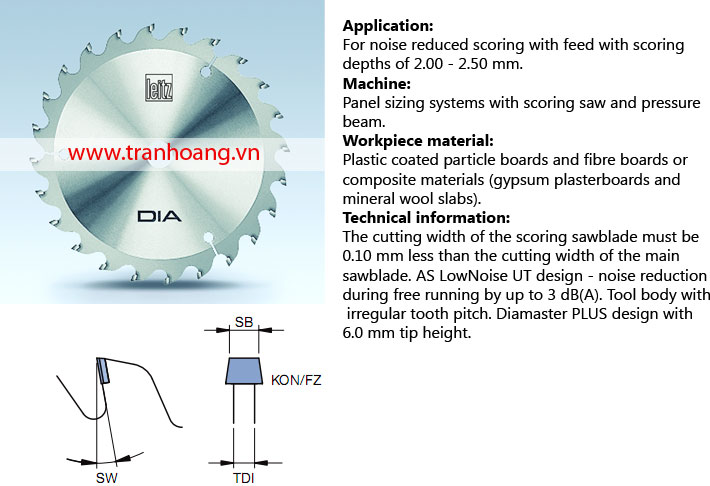

Scoring sawblades - Excellent DP TH81
Giá: Liên hệ

Thông số kỹ thuật:
Circular sawblades - AS LowNoise UT, Diamaster PLUS
WK 804-2

D
mm		 SB
mm		 TDI
mm		 BO
mm		 NLA
mm		 Z ZF SW
Degree		 nmax
min-1		 WSS ID
125 3.1 2.5 20   20 KON/FZ 10 18 300 190564
125 3.1 2.5 22   20 KON/FZ 10 18 300 190614
150 4.3 3.2 20   24 KON/FZ 10 15 200 190577
150 4.3 3.2 30   24 KON/FZ 10 15 200 190565
150 4.3 3.2 45   24 KON/FZ 10 15 200 190578
160 4.3 3.5 30   30 KON/FZ 10 14 300 190579
160 4.3 3.2 45 3/11/ 70 30 KON/FZ 10 14 300 190580
160 4.3 3.5 55 3/ 7/ 66 30 KON/FZ 10 14 300 190566
180 4.3 3.5 20 2/10/ 60 30 KON/FZ 10 12 700 190581
180 4.3 3.5 30 2/10/ 60 30 KON/FZ 10 12 700 190567
180 4.3 3.5 45   30 KON/FZ 10 12 700 190568
180 4.7 3.5 45   30 KON/FZ 10 12 700 190569
180 4.3 3.2 50 3/13/ 80 30 KON/FZ 10 12 700 190582
200 4.3 3.5 20   30 KON/FZ 10 11 400 190570
200 4.3 3.5 30 2/10/ 60 30 KON/FZ 10 11 400 190571
200 4.3 3.5 45   30 KON/FZ 10 11 400 190572
200 4.7 3.5 45   30 KON/FZ 10 11 400 190573
200 4.3 3.2 50 3/13/ 80 30 KON/FZ 10 11 400 190583
200 4.3 3.5 65 2/ 9/100
2/ 9/110		 30 KON/FZ 10 11 400 190615
200 4.7 3.5 65 2/ 9/110 30 KON/FZ 10 11 400 190574
200 4.3 3.5 80 2/14/110 30 KON/FZ 10 11 400 190616
215 4.3 3.2 50 3/15/ 80 36 KON/FZ 10 10 600 190575
250 4.3 3.5 30 2/10/ 60 36 KON/FZ 10 9 100 190576
