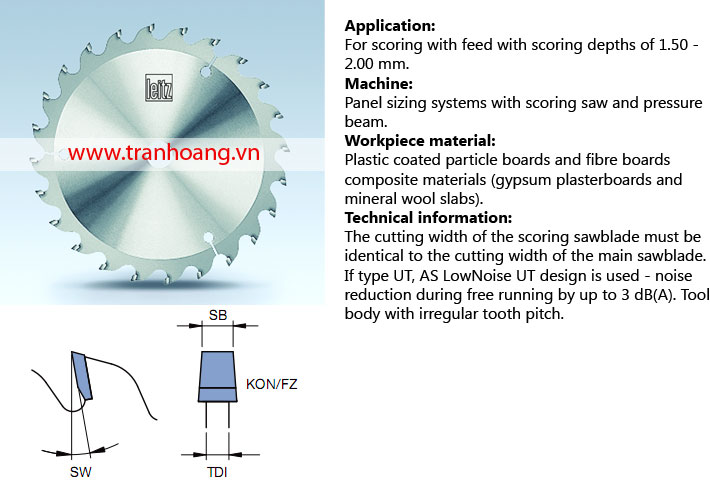

Scoring sawblades TH82
Giá: Liên hệ

Thông số kỹ thuật:
Circular sawblades
WK 804-2

Machine D
mm		 SB
mm		 TDI
mm		 BO
mm		 NLA
mm		 Z ZF SW
Degree		 Type nmax
min-1		 WSS ID
SCM 100 3.2 2.5 20   20 KON/FZ 5   22 900 061556
  100 3.2 2.5 22   20 KON/FZ 5   22 900 061557
  120 3.2 2.5 20   24 KON/FZ 5   19 000 061552
Panhans 125 4.4 3.5 20   24 KON/FZ 5   18 300 061516
Holz Her 125 4.4 3.5 45   24 KON/FZ 5   18 300 061518
Holz Her 140 4.4 3.5 45 1/8/58 24 KON/FZ 5   16 300 061519
Panhans
Teutomatic		 180 4.4 3.5 30 2/10/60 30 KON/FZ 5   12 700 061517
Holzma 180 4.8 3.5 45   36 KON/FZ 5 UT 12 700 061526
Holzma 180 3.8 3.5 45   36 KON/FZ 5   12 700 061566
Holzma 180 3.8 3.0 45   54 KON/FZ 5   12 700 061568
Scheer 200 4.8 3.5 30 2/10/60 36 KON/FZ 5 UT 11 400 061561
Holzma 200 4.8 3.5 45   36 KON/FZ 5 UT 11 400 061527
SCM 200 4.4 3.5 80 2/14/110 36 KON/FZ 5 UT 11 400 061542
Panhans 220 3.2 2.5 30   36 KON/FZ 5   10 400 061535
Panhans 250 4.4 3.5 30 2/10/60 42 KON/FZ 5   9 100 061537
Panhans 280 4.4 3.0 30 2/10/60 48 KON/FZ 5   8 100 061540
Holzma 280 3.8 3.0 45   48 KON/FZ 5   8 100 061567
