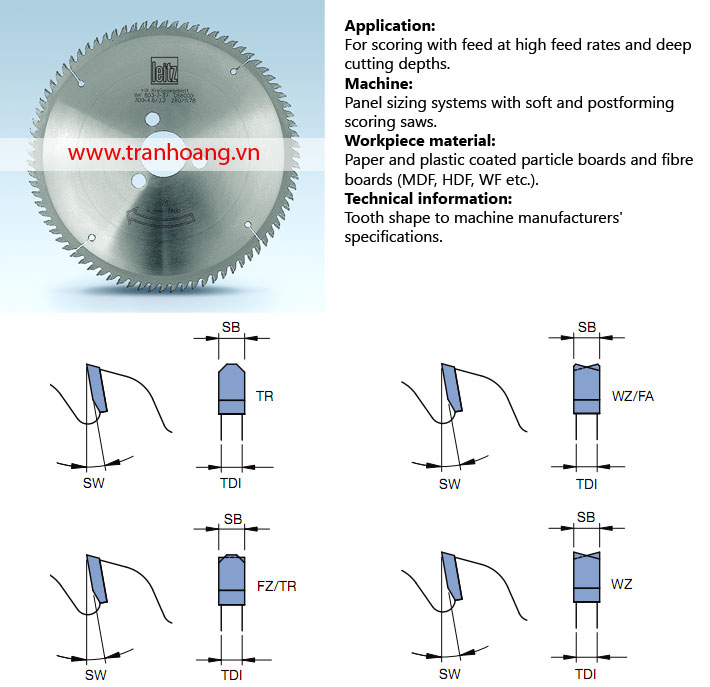

Scoring sawblades - profiles for softforming and postforming TH83
Giá: Liên hệ

Thông số kỹ thuật:
Circular sawblades - TR tooth shape
WK 803-2-37

Machine D
mm		 SB
mm		 TDI
mm		 BO
mm		 NLA
mm		 Z ZF SW
Degree		 nmax
min-1		 WSS ID
Giben 250 4.6 3.2 50 3/13/80 60 TR 10   059714
Giben 300 4.6 3.2 50 3/15/80 80 TR 10 7 600 068000
Holzma 340 4.95 3.5 45   80 TR 15 6 700 061606

Circular sawblades - FZ/TR tooth shape
WK 852-2, WK 852-2-37

Machine D
mm		 SB
mm		 TDI
mm		 BO
mm		 NLA
mm		 Z ZF SW
Degree		 nmax
min-1		 WSS ID
Panhans 220 3.35 2.5 30   48 FZ/TR 10 10 400 061536
Panhans 250 4.55 3.5 30 2/10/60 48 FZ/TR 10 9 100 061521
Panhans 280 4.55 3 30 2/10/60 60 FZ/TR 15 8 100 061614
Homag Esp. 300 4.55 3.2 75   96 FZ/TR 15 7 600 061615
Homag 350 4.55 3.2 75   72 FZ/TR 15 6 500 061613
Höfer
Panhans
Scheer
Schelling		 400 4.4 3.2 30 2/10/60 72 FZ/TR 15 4 700 059256
Scheer 450 4.8 3.5 30 2/10/60 72 FZ/TR 15 4 200 061616

Circular sawblades - WZ/FA tooth shape
WK 251-2, WK 851-2

Machine D
mm		 SB
mm		 TDI
mm		 BO
mm		 NLA
mm		 Z ZF SW
Degree		 nmax
min-1		 WSS ID
Panhans 180 4.55 3.5 30   36 WZ/FA 5 12 700 059192
Schelling 300 4.55 3.2 30   72 WZ/FA 10 7 600 061618
Selco 300 4.55 3.2 65 2/9/110 72 WZ/FA 10 7 600 059189
Selco 300 4.6 3.2 65 2/9/100 72 WZ/FA 10 7 600 061620
Selco 350 4.6 3.2 65 2/9/110 72 WZ/FA 10 6 500 061621
Selco 350 5.0 3.5 65 2/9/110 72 WZ/FA 10 6 500 061622

Circular sawblades - WZ tooth shape
WK 850-2

Machine D
mm		 SB
mm		 TDI
mm		 BO
mm		 Z ZF SW
Degree		 nmax
min-1		 WSS ID
Homag 250 4.55 3.2 45 80 WZ 10 9 100 061617
Holzma 280 4.55 3.2 45 84 WZ 10 8 100 061619
Holzma 280 4.95 3.5 45 84 WZ 10 8 100 061676
Holzma 280 4.1 3.5 45 84 WZ 10   061569
Holzma 340 5.0 3.5 45 108 WZ 10 6 700 061611
