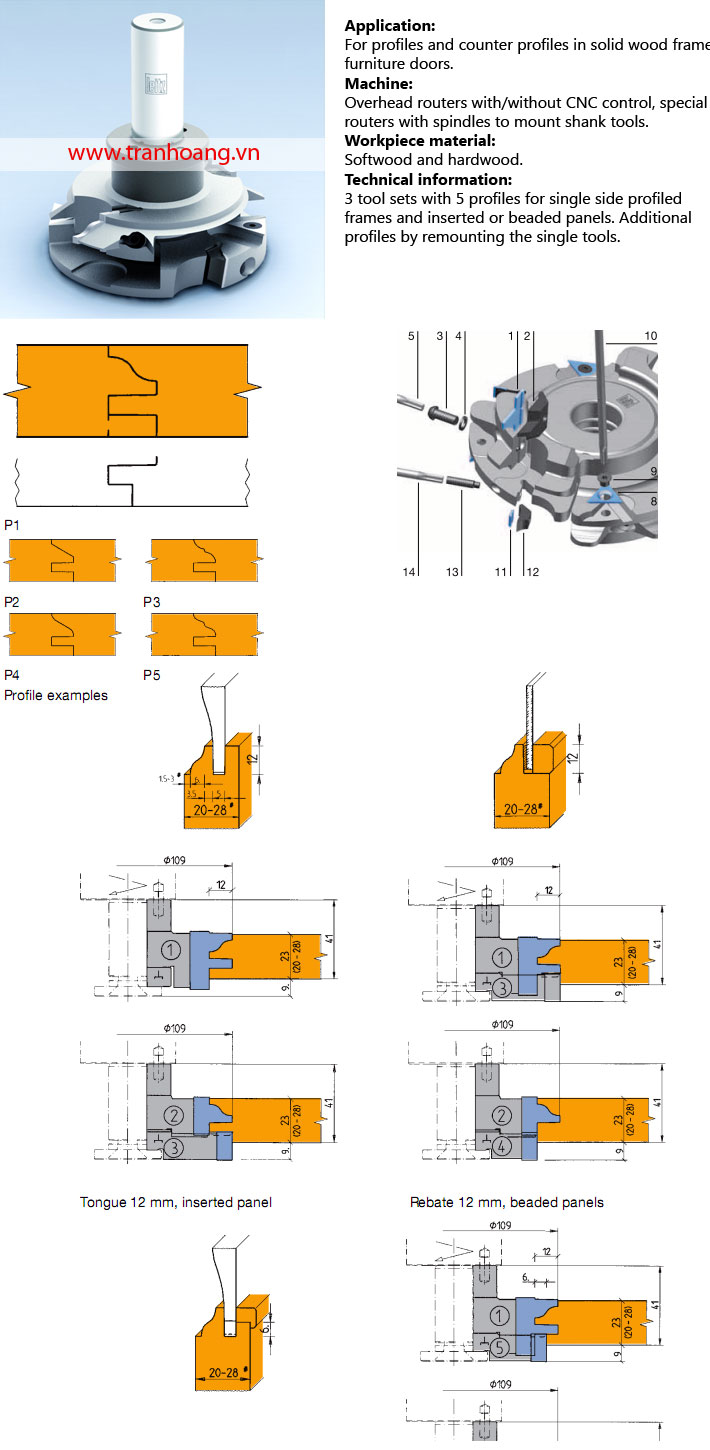

| Profile cutterhead set ProfilCut Door frame TH-483-484 |
|
|
| |
| Thông số kỹ thuật: |
Frame profile one side, 12 mm tongue
SE 640-2-50, AG 341-2-50
| Tool Type |
Tool no. |
Z |
nmax
min-1 |
ID |
|
| Profile set |
1 |
2 |
14 500 |
126006 |
|
| Counter profile set |
2.3 |
2/2 |
14 500 |
126007 |
|
| Tool set profile and counter profile mounted on arbor |
|
|
|
043098 |
|
Frame profile one side, 12 mm rebate
SE 640-2-50, AG 341-2-50
| Tool Type |
Tool no. |
Z |
nmax
min-1 |
ID |
|
| Profile set |
1.3 |
2/2 |
14 500 |
126008 |
|
| Counter profile set |
2.4 |
2/2 |
14 500 |
126009 |
|
| Tool set profile and counter profile mounted on arbor |
|
|
|
043099 |
|
Frame profile one side, 6 mm tongue
SE 640-2-50, AG 341-2-50
| Tool Type |
Tool no. |
Z |
nmax
min-1 |
ID |
|
| Profile set |
1.5 |
2/2 |
14 500 |
126010 |
|
| Counter profile set |
2.5 |
2/2 |
14 500 |
126011 |
|
| Tool set profile and counter profile mounted on arbor |
|
|
|
043100 |
|
Single tools
WE 500-2-50, WW 410-2-NN
| Tool Type |
Tool no. |
ABM
mm |
Z |
ID |
|
| Profile cutterhead |
1 |
109.1x30x20 |
2 |
023968 |
|
| Profile cutterhead |
2 |
109.0x20x20 |
2 |
023969 |
|
| Rebating cutterhead |
3 |
109.0x15x20 |
Z2/V2 |
023970 |
|
| Profile cutterhead |
4 |
85x15x20 |
2 |
023971 |
|
| Rebating cutterhead |
5 |
97x15x20 |
Z2/V2 |
023972 |
|
Cutter arbor see section 8 Clamping systems.
Tools supplied with profile 1 unless ordered otherwise
Spare knives
| Part-no. |
BEZ |
P |
Tool no. |
ABM
mm |
QAL |
VE
PCS |
ID |
|
| 1 |
ProfilCut knife |
1 |
1 |
30x23.2x2 |
MC |
|
009215 |
|
| 1 |
ProfilCut knife |
2 |
1 |
30x23.2x2 |
MC |
|
009216 |
|
| 1 |
ProfilCut knife |
3 |
1 |
30x23.2x2 |
MC |
|
009217 |
|
| 1 |
ProfilCut knife |
4 |
1 |
30x23.2x2 |
MC |
|
009218 |
|
| 1 |
ProfilCut knife |
5 |
1 |
30x23.2x2 |
MC |
|
009219 |
|
| 1 |
ProfilCut knife |
1 |
2 |
20x23x2 |
MC |
|
009225 |
|
| 1 |
ProfilCut knife |
2 |
2 |
20x23x2 |
MC |
|
009226 |
|
| 1 |
ProfilCut knife |
3 |
2 |
20x23x2 |
MC |
|
009227 |
|
| 1 |
ProfilCut knife |
4 |
2 |
20x23x2 |
MC |
|
009228 |
|
| 1 |
ProfilCut knife |
5 |
2 |
20x23x2 |
MC |
|
009229 |
|
| 8 |
Turnblade spur VS2 |
|
3. 5 |
19x19x2 |
HW-F |
10 |
005115 |
|
| 11 |
Turnblade knife |
|
3. 4. 5 |
14.7x8x1.5 |
HW-30F |
10 |
005070 |
|
Spare parts
Part-
no. |
BEZ |
Tool
no. |
ABM
mm |
P |
ID |
|
| 2 |
Clamping wedge profiled |
1 |
28x29x8.27 |
1-5 |
009726 |
|
| 2 |
Clamping wedge profiled |
2 |
18x29x8.27 |
1-5 |
009728 |
|
| 3 |
Clamping screw, Torx® 25 |
|
M6x18,5 |
|
007818 |
|
| 4 |
Washer |
|
D9x1,2 |
|
006747 |
|
| 5 |
Torx® key |
|
Torx® 25 |
|
117504 |
|
| 9 |
Countersink screw, Torx® 20 |
|
M5x8,5 |
|
007808 |
|
| 10 |
Torx® key |
|
Torx® 20 |
|
117503 |
|
| 12 |
Clamping wedge |
3. 4. 5 |
13x18.75x8.27 |
|
009670 |
|
| |
Magnetic setting gauge |
|
0,3/0,8 |
|
005376 |
|
|
|
|
