| Profile cutterhead set ProfilCut Door frame TH-485-486 |
|
|
| |

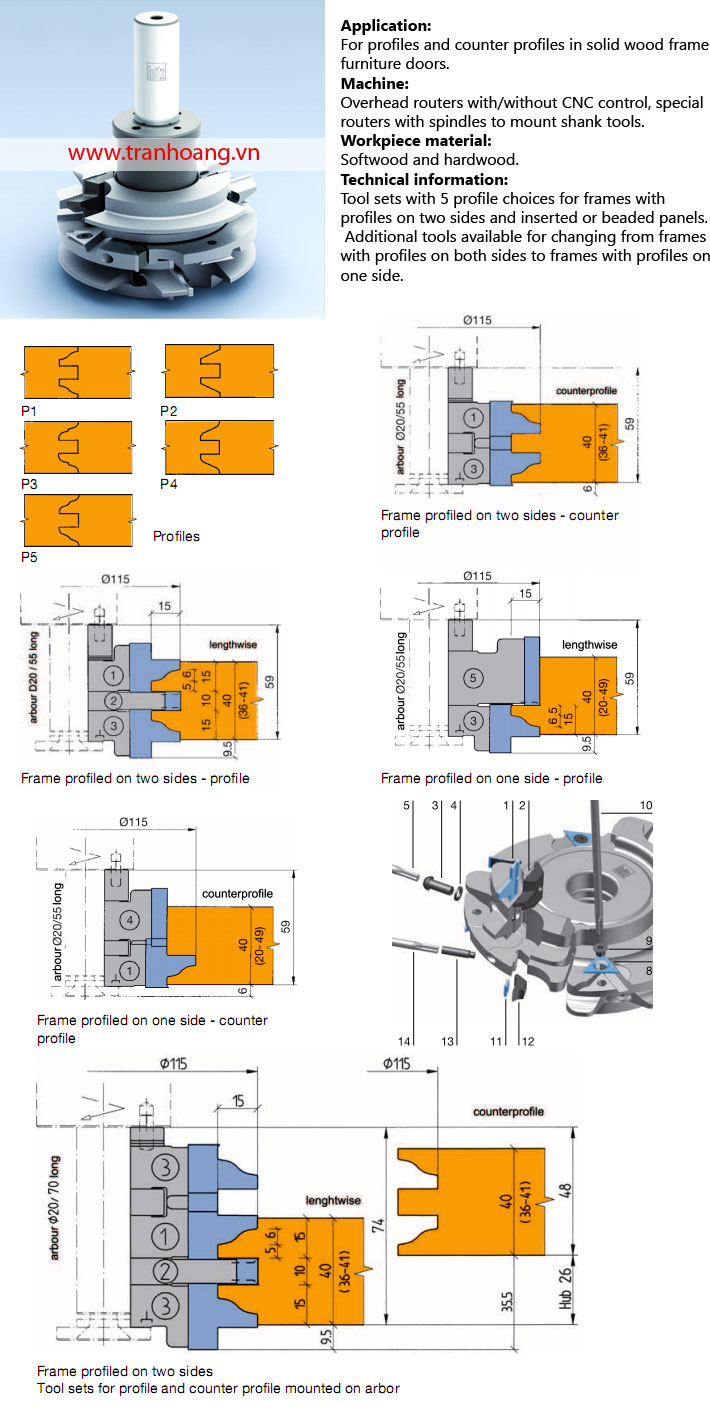

| Thông số kỹ thuật: |
Frame profile two sides, 15 mm tongue
SE 640-2-50, AG 341-2-50
| Tool Type |
Tool no. |
Z |
nmax
min-1 |
ID |
|
| Profile set |
1.2.3 |
Z2/V2 |
13 200 |
126012 |
|
| Counter profile set |
1.3 |
Z2 |
13 200 |
126013 |
|
| Tool set profile and counter profile mounted on arbor |
|
|
|
126513 |
|
Frame profile one side, 15 mm rebate
SE 640-2-50, AG 341-2-50
| Tool Type |
Tool no. |
Z |
nmax
min-1 |
ID |
|
| Profile set |
3.5 |
Z2/V2 |
13 200 |
126014 |
|
| Counter profile set |
1.4 |
Z2 |
13 200 |
126015 |
|
| Tool set profile and counter profile mounted on arbor |
|
|
|
126514 |
|
Frame profile two sides, 15 mm tongue, profile and counter profile
SE 640-2-50, SG 699-2-50
| Tool Type |
Tool no. |
Z |
nmax
min-1 |
ID |
|
| Profile and counter profile set |
3.1.2.3 |
Z2/V2 |
13 200 |
126016 |
|
| Tool set profile and counter profile mounted on arbor |
|
|
13 200 |
126515 |
|
Additional tool (conversion from tongue 15 mm to rebate 15 mm)
WW 410-2-NN, WW 211-2
| Tool Type |
Tool no. |
Z |
nmax
min-1 |
ID |
|
| Profile set |
5 |
Z2/V2 |
13 200 |
125032 |
|
| Jointing cutterhead |
4 |
2 |
13 200 |
023085 |
|
Cutter arbor see section 8 Clamping systems.
Wood thickness:
frame profile two sides HD 36 - 41 mm
frame profile one side HD 20 - 49 mm
Spare knives
Part-
no. |
BEZ |
P |
Tool
no. |
ABM
mm |
QAL |
VE
PCS |
ID |
|
| 1 |
ProfilCut knife |
1 |
3 |
25x27x2 |
MC |
|
619054 |
|
| 1 |
ProfilCut knife |
2 |
3 |
25x27x2 |
MC |
|
619055 |
|
| 1 |
ProfilCut knife |
3 |
3 |
25x27x2 |
MC |
|
619056 |
|
| 1 |
ProfilCut knife |
4 |
3 |
25x27x2 |
MC |
|
619057 |
|
| 1 |
ProfilCut knife |
5 |
3 |
25x27x2 |
MC |
|
619058 |
|
| 1 |
ProfilCut knife |
1 |
1 |
25x27x2 |
MC |
|
619059 |
|
| 1 |
ProfilCut knife |
2 |
1 |
25x27x2 |
MC |
|
619060 |
|
| 1 |
ProfilCut knife |
3 |
1 |
25x27x2 |
MC |
|
619061 |
|
| 1 |
ProfilCut knife |
4 |
1 |
25x27x2 |
MC |
|
619062 |
|
| 1 |
ProfilCut knife |
5 |
1 |
25x27x2 |
MC |
|
619063 |
|
| 11 |
Turnblade knife |
|
2 |
9.7x8x1.5 |
HW-30F |
10 |
005197 |
|
| 11 |
Turnblade knife |
|
5 |
35x8x1.5 |
HW-30F |
10 |
005073 |
|
| 11 |
Turnblade knife |
|
4 |
30x8x1.5 |
HW-30F |
10 |
005072 |
|
| 15 |
Turnblade spur VS2 |
|
2. 5 |
19x19x2 |
HW-F |
10 |
005115 |
|
Spare parts
| Part-no. |
BEZ |
Tool no. |
ABM
mm |
ID |
|
| 2 |
Clamping wedge profiled |
3 |
23x34x8.27 |
629013 |
|
| 2 |
Clamping wedge profiled |
1 |
23x34x8.27 |
629012 |
|
| 3 |
Clamping screw, Torx® 25 |
|
M6x18,5 |
007818 |
|
| 4 |
Washer |
|
D9x1,2 |
006747 |
|
| 5 |
Torx® key |
|
Torx® 25 |
117504 |
|
| 9 |
Countersink screw, Torx® 20 |
|
M6x0,5x4,9 |
006243 |
|
| 10 |
Torx® key |
|
Torx® 20 |
117503 |
|
| 12 |
Clamping wedge |
2 |
9x18.75x8.27 |
009764 |
|
| 12 |
Clamping wedge |
4 |
28x18.75x8.27 |
009673 |
|
| 12 |
Clamping wedge |
5 |
33x18.75x8.27 |
009674 |
|
| 13 |
Allen screw with shank, Torx® 15 |
|
M5x20 |
007380 |
|
| 14 |
Torx® key |
|
Torx® 15 |
117507 |
|
| |
Magnetic setting gauge |
|
0,3/0,8 |
005376 |
|
|
|
|
