| Multi purpose profile cutterhead, Z 2 TH-495 |
|
|
| |
| Thông số kỹ thuật: |
For profiles, Z 2, cutting in end grain
WG 502-2-01
D
mm |
GL
mm |
SB
mm |
S
mm |
Z |
DRI |
ID |
|
| 65 |
95 |
14 - 28 |
16x50 |
2 |
RL |
042872 |
|
| 65 |
95 |
14 - 28 |
20x50 |
2 |
RL |
042873 |
|
| 65 |
105 |
14 - 28 |
25x60 |
2 |
RL |
042870 |
|
Sales unit consisting of cutterhead with clamping wedge but without profiled HW knives and backing plates. Tip with 1 replaceable profile knife and backing plate each, version A and 1 replaceable profile knife and backing plate each, version B.
Minimum order quantity:
Replaceable profile knife: 6 pcs. each A and B
Backing plates: 1 pc. each A and B

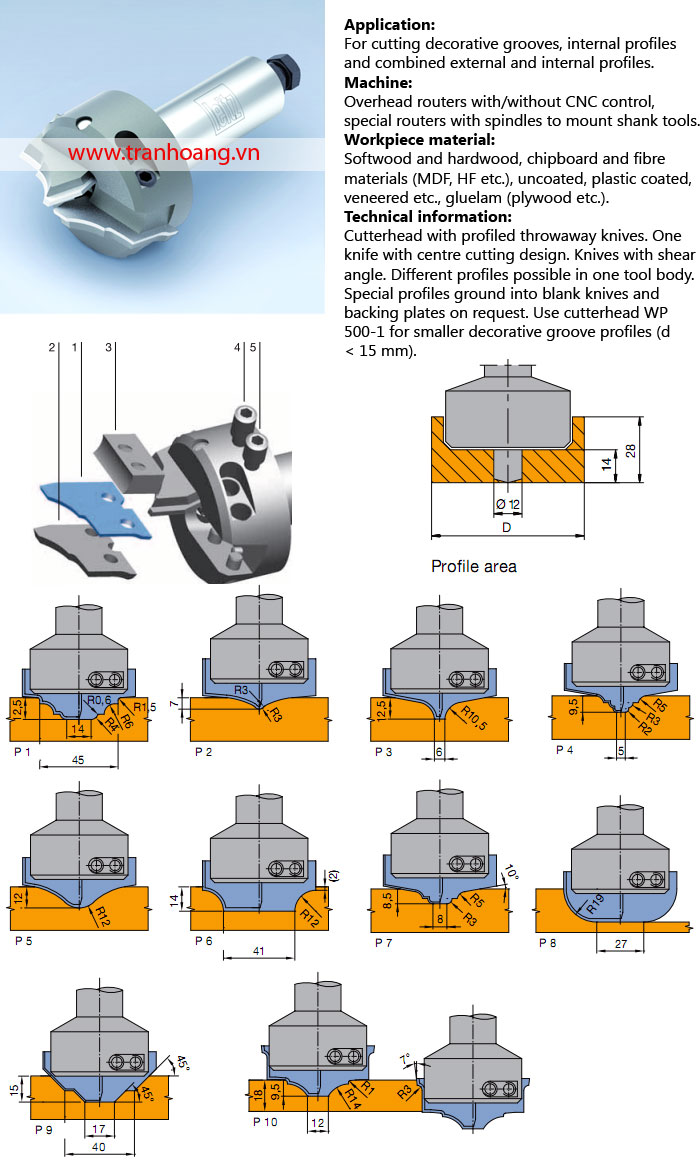

Profile examples see below.
Spare parts
| Part-no. |
BEZ |
ABM
mm |
QAL |
ID |
|
| 1 |
Blank knife |
35.5x30.5x2 |
HW |
007488 |
|
| 1 |
Blank knife |
35.5x30.5x2 |
HW |
007489 |
|
| 2 |
Backing plate A |
34x28x4 |
|
007923 |
|
| 2 |
Backing plate B |
34x28x4 |
|
007924 |
|
| 3 |
Clamping wedge |
25x15x8 |
|
009969 |
|
| 4 |
Allen screw |
M8x16 |
|
006042 |
|
| 5 |
Allen screw |
M8x14 |
|
006073 |
|
| |
Allen Key |
SW 4 |
|
005445 |
|
Sets of profile knives and backing plates
AT 103-0
| P |
ID
Profile cutterset |
|
ID
Set of backing plates |
|
| 1 |
692000 |
|
692200 |
|
| 2 |
692001 |
|
692201 |
|
| 3 |
692002 |
|
692202 |
|
| 4 |
692003 |
|
692203 |
|
| 5 |
692004 |
|
692204 |
|
| 6 |
692005 |
|
692205 |
|
| 7 |
692006 |
|
692206 |
|
| 8 |
692007 |
|
692207 |
|
| 9 |
692008 |
|
692208 |
|
| 10 |
692009 |
|
692209 |
|
Set of profile knives consisting of 1 profile knife design A and B each.
Set of backing plates consisting of 1 backing plate design A and B each.
Minimum order quantity: set of profile knives: 6 pcs., set of backing plates: 1 pc |
|
|
