SẢN PHẨM
|
|
|
|
 |
| |

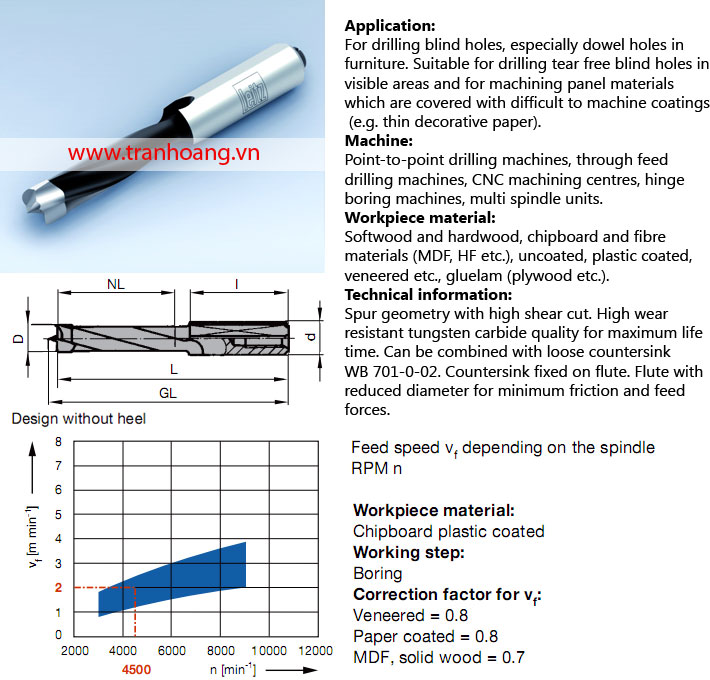

| Shank 10 mm, HW tipped TH-517 |
|
|
| |
| Thông số kỹ thuật: |
GL 57.5 mm, Z 2 / V 2
WB 120-0-29
D
mm |
GL
mm |
L
mm |
NL
mm |
S
mm |
ID
LL |
|
ID
RL |
|
| 4 |
57.5 |
56 |
25 |
10x27 |
033714 |
|
033715 |
|
| 5 |
57.5 |
56 |
25 |
10x27 |
033716 |
|
033717 |
|
| 6 |
57.5 |
56 |
25 |
10x27 |
033718 |
|
033719 |
|
| 8 |
57.5 |
55.5 |
25 |
10x27 |
033720 |
|
033721 |
|
| 10 |
57.5 |
55.5 |
25 |
10x27 |
033722 |
|
033723 |
|
RPM:
n = 3000 - 9000 min-1
GL 70 mm, Z 2 / V 2
WB 120-0-30
D
mm |
GL
mm |
L
mm |
NL
mm |
S
mm |
ID
LL |
|
ID
RL |
|
| 4 |
70 |
68.5 |
35 |
10x30 |
033482 |
|
033483 |
|
| 5 |
70 |
68.5 |
35 |
10x30 |
033484 |
|
033485 |
|
| 5.1 |
70 |
68.5 |
35 |
10x30 |
033492 |
|
033493 |
|
| 6 |
70 |
68.5 |
35 |
10x30 |
033486 |
|
033487 |
|
| 8 |
70 |
68.5 |
35 |
10x30 |
033488 |
|
033489 |
|
| 8.2 |
70 |
68.5 |
35 |
10x30 |
033494 |
|
033495 |
|
| 10 |
70 |
68.5 |
35 |
10x30 |
033490 |
|
033491 |
|
RPM:
n = 3000 - 9000 min-1
Spare parts
| BEZ |
ABM
mm |
BEM |
ID |
|
| Allen screw |
M5x10 |
Length adjustment |
005802 |
|
| Allen screw |
M3x2,5 |
Locking device |
007889 |
|
| Anti twist allen screw |
M5x10 |
Length adjustment |
007438 |
|
|
|
|
