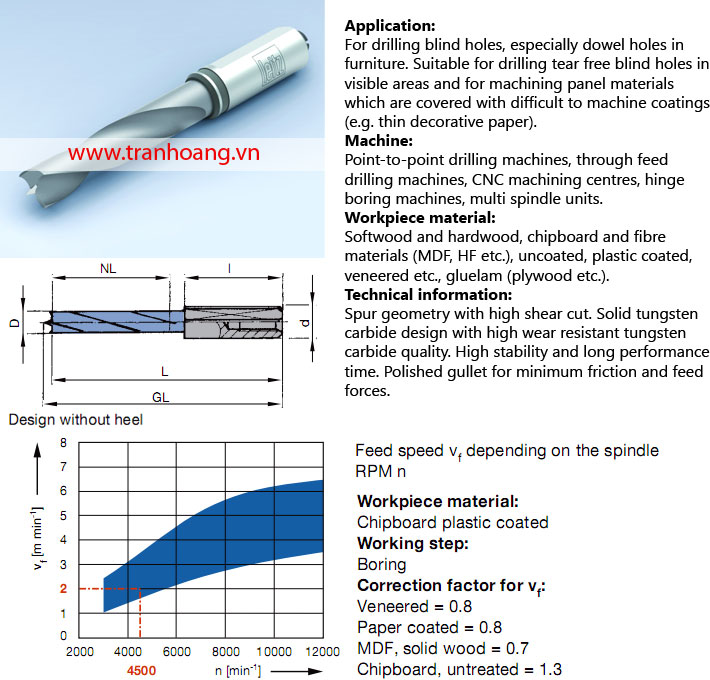

| Shank 10 mm, HW solid TH-518 |
|
|
| |
| Thông số kỹ thuật: |
GL 57.5 mm, Z 2 / V 2
WB 120-0-11, WB 120-0-32
D
mm |
GL
mm |
L
mm |
NL
mm |
S
mm |
ID
LL |
|
ID
RL |
|
| 3 |
57.5 |
56 |
16 |
10x34 |
033610 |
|
033611 |
|
| 4 |
57.5 |
56 |
25 |
10x27 |
033784 |
|
033785 |
|
| 5 |
57.5 |
56 |
25 |
10x27 |
033728 |
|
033729 |
|
| 6 |
57.5 |
56 |
25 |
10x27 |
033730 |
|
033731 |
|
| 8 |
57.5 |
56 |
25 |
10x27 |
033732 |
|
033733 |
|
| 10 |
57.5 |
55.5 |
25 |
10x27 |
033786 |
|
033787 |
|
RPM:
n = 3000 - 12000 min-1
GL 70 mm, Z 2 / V 2
WB 120-0-10, WB 120-0-11, WB 120-0-33
D
mm |
GL
mm |
L
mm |
NL
mm |
S
mm |
ID
LL |
|
ID
RL |
|
| 3 |
70 |
68.5 |
16 |
10x45 |
042596 |
|
042597 |
|
| 4 |
70 |
68.5 |
35 |
10x27 |
033542 |
|
033543 |
|
| 5 |
70 |
68.5 |
35 |
10x27 |
033496 |
|
033497 |
|
| 6 |
70 |
68.5 |
35 |
10x27 |
033498 |
|
033499 |
|
| 7 |
70 |
68.5 |
35 |
10x27 |
033548 |
|
|
|
| 7 |
70 |
68.5 |
35 |
10x27 |
|
|
033549 |
|
| 8 |
70 |
68.5 |
35 |
10x27 |
033500 |
|
033501 |
|
| 10 |
70 |
68 |
35 |
10x27 |
033540 |
|
033541 |
|
RPM:
n = 3000 - 12000 min-1
Spare parts
| BEZ |
ABM
mm |
BEM |
ID |
|
| Allen screw |
M5x10 |
Length adjustment |
005802 |
|
| Allen screw |
M3x2,5 |
Locking device |
007889 |
|
| Anti twist allen screw |
M5x10 |
Length adjustment |
007438 |
|
|
|
|
