| Thông số kỹ thuật: |
Z 4 - Z 10
HM 200-2-05
D
mm |
SB
mm |
BO
mm |
Z |
QAL |
Scheme |
nmax
min-1 |
ID |
|
| 143 |
160 |
40 |
4 |
HS |
2 |
9 000 |
142003 |
|
| 163 |
160 |
50 |
4 |
HS |
2 |
9 000 |
142008 |
|
| 163 |
230 |
50 |
4 |
HS |
2 |
9 000 |
142009 |
|
| 163 |
260 |
50 |
4 |
HS |
2 |
9 000 |
142010 |
|
| 163 |
60 |
50 |
6 |
HS |
1 |
9 000 |
142011 |
|
| 163 |
100 |
50 |
6 |
HS |
1 |
9 000 |
142012 |
|
| 163 |
130 |
50 |
6 |
HS |
1 |
9 000 |
142013 |
|
| 163 |
160 |
50 |
6 |
HS |
2 |
9 000 |
142014 |
|
| 163 |
230 |
50 |
6 |
HS |
2 |
9 000 |
142015 |
|
| 163 |
260 |
50 |
6 |
HS |
2 |
9 000 |
142016 |
|
| 163 |
60 |
50 |
8 |
HS |
1 |
9 000 |
142017 |
|
| 163 |
100 |
50 |
8 |
HS |
1 |
9 000 |
142018 |
|
| 163 |
160 |
50 |
8 |
HS |
2 |
9 000 |
142019 |
|
| 163 |
230 |
50 |
8 |
HS |
2 |
9 000 |
142020 |
|
| 203 |
230 |
50 |
8 |
HS |
2 |
6 400 |
142024 |
|
| 203 |
150 |
50 |
10 |
HS |
2 |
6 400 |
142026 |
|

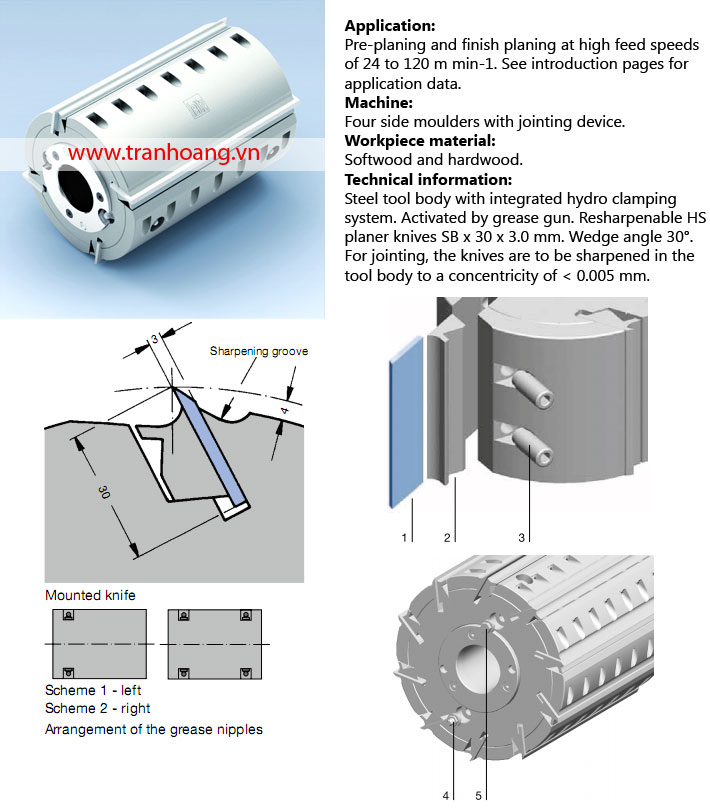

For spare knives of other dimensions and qualities, see section 9 Knives and Spare Parts.
Marathon knives (MC33) for high performance, especially in softwood.
Spare knives
| Part-no. |
SB
mm |
H
mm |
DIK
mm |
QAL |
ID |
|
| 1 |
60 |
30 |
3 |
HS |
009362 |
|
| 1 |
100 |
30 |
3 |
HS |
009350 |
|
| 1 |
130 |
30 |
3 |
HS |
009351 |
|
| 1 |
150 |
30 |
3 |
HS |
009352 |
|
| 1 |
160 |
30 |
3 |
HS |
009363 |
|
| 1 |
230 |
30 |
3 |
HS |
009354 |
|
| 1 |
260 |
30 |
3 |
HS |
009355 |
|
Spare parts
| Part-no. |
BEZ |
ABM
mm |
ID |
|
| 2 |
Clamping wedge |
52x25.3x10.8 |
620711 |
|
| 2 |
Clamping wedge |
92x25.3x10.8 |
620712 |
|
| 2 |
Clamping wedge |
122x25.3x10.8 |
620713 |
|
| 2 |
Clamping wedge |
142x25.3x10.8 |
620714 |
|
| 2 |
Clamping wedge |
152x25.3x10.8 |
620715 |
|
| 2 |
Clamping wedge |
222x25.3x10.8 |
620716 |
|
| 2 |
Clamping wedge |
252x25.3x10.8 |
620717 |
|
| 3 |
Allen screw |
M10x1x25 |
007395 |
|
| 3 |
Allen screw |
M10x1x20 |
007396 |
|
| 3 |
Allen screw |
M10x1x16 |
007397 |
|
| 4 |
Grease nipple |
M10x1 |
007935 |
|
| 5 |
Relief plug |
M10x1 |
007983 |
|
| |
Allen Key |
SW 5 |
117509 |
|
| |
Grease gun |
|
008239 |
|
|
|
|
