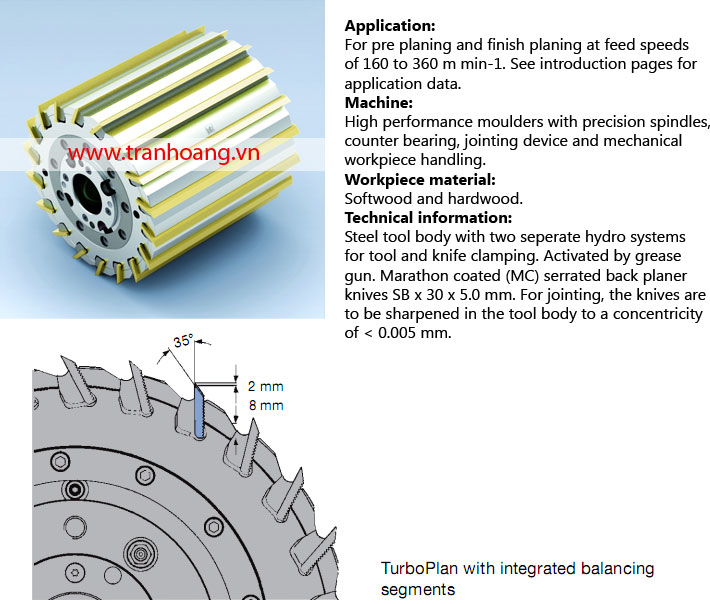

| TurboPlan hydro planerhead TH-227 |
|
|
| |
| Thông số kỹ thuật: |
Z 18 - Z 26
HM 200-2-04
D
mm |
SB
mm |
Z |
ND
mm |
BOmax
mm |
nmax
min-1 |
ID |
|
| 225 |
130 |
18 |
132 |
50 |
7 200 |
142218 |
|
| 225 |
150 |
18 |
152 |
50 |
7 200 |
142219 |
|
| 225 |
230 |
18 |
232 |
50 |
7 200 |
142220 |
|
| 250 |
130 |
20 |
132 |
60 |
6 900 |
142201 |
|
| 250 |
150 |
20 |
152 |
60 |
6 900 |
142202 |
|
| 250 |
230 |
20 |
232 |
60 |
6 900 |
142203 |
|
| 260 |
130 |
22 |
132 |
60 |
6 700 |
142205 |
|
| 260 |
150 |
22 |
152 |
60 |
6 700 |
142206 |
|
| 260 |
230 |
22 |
232 |
60 |
6 700 |
142207 |
|
| 300 |
130 |
26 |
132 |
60 |
6 300 |
142209 |
|
| 300 |
150 |
26 |
152 |
60 |
6 300 |
142210 |
|
| 300 |
230 |
26 |
232 |
60 |
6 300 |
142211 |
|
Spare knives
SB
mm |
H
mm |
DIK
mm |
QAL |
ID |
|
| 130 |
30 |
5 |
MC |
605451 |
|
| 150 |
30 |
5 |
MC |
605452 |
|
| 230 |
30 |
5 |
MC |
605453 |
|
Spare parts
| BEZ |
ABM
mm |
BEM |
ID |
|
| Clamping wedge |
52x18.6x9.3 |
for SB = 60 |
620650 |
|
| Clamping wedge |
122x18.6x9.3 |
for SB = 130 |
620651 |
|
| Clamping wedge |
142x18.6x9.3 |
for SB = 150 |
620652 |
|
| Clamping wedge |
222x18.6x9.3 |
for SB = 230 |
620653 |
|
| Knife setting device |
for TurboPlan |
|
142290 |
|
| Setting gauge for Hydro planerhead |
Knife protrusion 3,8 mm |
|
142291 |
|
| Grease nipple |
M10x1 |
|
007935 |
|
| Relief plug |
M10x1 |
|
007983 |
|
| Grease gun |
|
|
008239 |
|
| Grease cartridge |
for Hydro sleeve |
|
007934 |
|
| Allen Key |
SW 3 |
|
005444 |
|
| Jointing stone (round) |
12x32 |
Colour: grey |
008237 |
|
| Jointing stone (angular) |
20x15x60 |
Colour: brown |
008238 |
|
|
|
|
