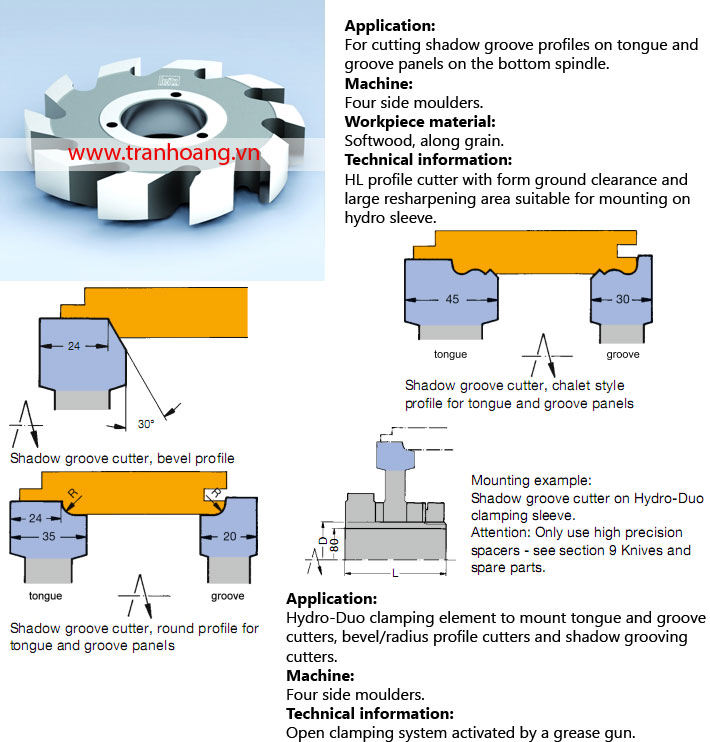

| Shadow grooving cutter for tongue and groove panels, HL solid TH-238-239 |
|
|
| |
| Thông số kỹ thuật: |
Bevel profile, tongue 30°
WF 741-2
D
mm |
SB
mm |
BO
mm |
Z |
nmax
min-1 |
ID |
|
| 200 |
35 |
60 |
10 |
8 000 |
023400 |
|
| 220 |
35 |
60 |
12 |
7 000 |
023401 |
|
Round profile
WF 501-2
| Tool Type |
D
mm |
SB
mm |
BO
mm |
Z |
R
mm |
nmax
min-1 |
ID |
|
| Groove side |
200 |
20 |
60 |
10 |
5 |
8 000 |
023604 |
|
| Tongue side |
200 |
35 |
60 |
10 |
5 |
8 000 |
023605 |
|
| Groove side |
200 |
20 |
60 |
10 |
6 |
8 000 |
023606 |
|
| Tongue side |
200 |
35 |
60 |
10 |
6 |
8 000 |
023607 |
|
| Groove side |
200 |
20 |
60 |
10 |
7 |
8 000 |
023608 |
|
| Tongue side |
200 |
35 |
60 |
10 |
7 |
8 000 |
023609 |
|
| Groove side |
200 |
20 |
60 |
10 |
8 |
8 000 |
023610 |
|
| Tongue side |
200 |
35 |
60 |
10 |
8 |
8 000 |
023611 |
|
| Groove side |
220 |
20 |
60 |
12 |
5 |
7 000 |
023612 |
|
| Tongue side |
220 |
35 |
60 |
12 |
5 |
7 000 |
023613 |
|
| Groove side |
220 |
20 |
60 |
12 |
6 |
7 000 |
023614 |
|
| Tongue side |
220 |
35 |
60 |
12 |
6 |
7 000 |
023615 |
|
| Groove side |
220 |
20 |
60 |
12 |
7 |
7 000 |
023616 |
|
| Tongue side |
220 |
35 |
60 |
12 |
7 |
7 000 |
023617 |
|
| Groove side |
220 |
20 |
60 |
12 |
8 |
7 000 |
023618 |
|
| Tongue side |
220 |
35 |
60 |
12 |
8 |
7 000 |
023619 |
|
Chalet style profile
WF 502-2
| Tool Type |
D
mm |
SB
mm |
BO
mm |
Z |
nmax
min-1 |
ID |
|
| Groove side |
200 |
30 |
60 |
8 |
8 000 |
023620 |
|
| Tongue side |
200 |
45 |
60 |
8 |
8 000 |
023621 |
|
| Groove side |
200 |
30 |
60 |
10 |
8 000 |
023622 |
|
| Tongue side |
200 |
45 |
60 |
10 |
8 000 |
023623 |
|
| Groove side |
200 |
30 |
60 |
12 |
8 000 |
023624 |
|
| Tongue side |
200 |
45 |
60 |
12 |
8 000 |
023625 |
|
Hydro-Duo clamping sleeve
PH 130-0
| BEM |
D
mm |
BO
mm |
L
mm |
ID |
|
| For bevel- or radius cutter |
60 |
45 |
80 |
030517 |
|
| For bevel- or radius cutter |
60 |
50 |
80 |
030522 |
|
| For shadow grooving cutter bevel- and radius profile |
60 |
45 |
80 |
030523 |
|
| For shadow grooving cutter bevel- and radius profile |
60 |
50 |
80 |
030516 |
|
| For shadow grooving cutter chalet style profile |
60 |
45 |
80 |
030525 |
|
| For shadow grooving cutter chalet style profile |
60 |
50 |
80 |
030524 |
|
|
|
|
