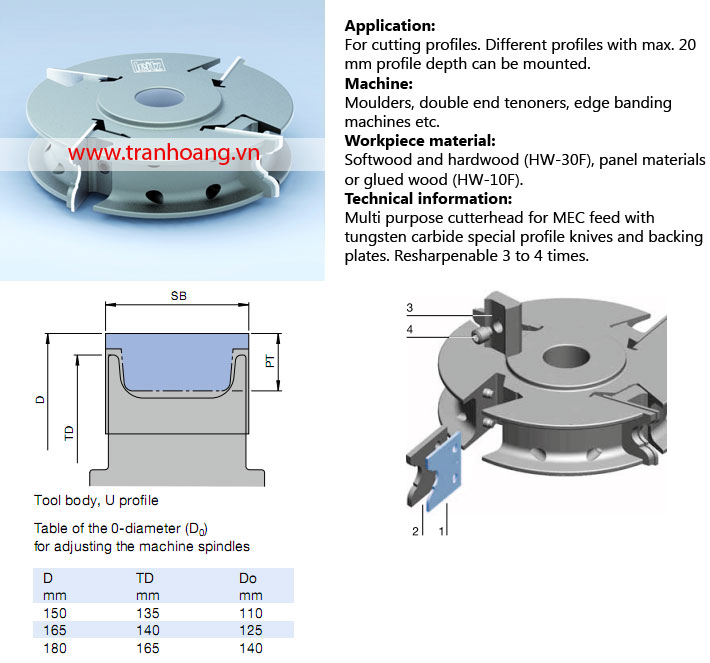

| Profile cutterhead VariForm TH-245 |
|
|
| |
| Thông số kỹ thuật: |
Partly profiled tool body, MEC feed, Z2 - Z4 U profile
TT 531-2
D
mm |
TD
mm |
SB
mm |
BO
mm |
BOmax
mm |
PTmax
mm |
Z |
nmax
min-1 |
ID |
|
| 165 |
140 |
40 |
30 |
40 |
20 |
2 |
10 000 |
135212 |
|
| 165 |
140 |
50 |
30 |
40 |
20 |
2 |
10 000 |
135213 |
|
| 165 |
140 |
60 |
30 |
40 |
20 |
2 |
10 000 |
134214 |
|
| 180 |
165 |
40 |
35 DKN |
35 |
20 |
4 |
9 000 |
135203 |
|
| 180 |
165 |
50 |
35 DKN |
35 |
20 |
4 |
9 000 |
135204 |
|
| 180 |
165 |
40 |
30 |
50 |
20 |
4 |
9 000 |
135206 |
|
| 180 |
165 |
60 |
30 |
50 |
20 |
4 |
9 000 |
135208 |
|
Supplied with clamping wedges, but without backing plates and knives.
Spare knives
| Part-no. |
H
mm |
SB
mm |
ID
HW-10F |
|
ID
HW-30F |
|
| 1 |
45 |
40 |
636226 |
|
636239 |
|
| 1 |
45 |
50 |
636283 |
|
636271 |
|
| 1 |
45 |
60 |
636287 |
|
636275 |
|
Spare parts
| Part-no. |
BEZ |
ABM
mm |
for SB
mm |
ID |
|
| 2 |
Backing plate VariForm |
for knives 40x45x2.1 |
|
645004 |
|
| 2 |
Backing plate VariForm |
for knives 50x45x2.1 |
|
645005 |
|
| 2 |
Backing plate VariForm |
for knives 60x45x2.1 |
|
645006 |
|
| 3 |
Clamping wedge |
36x13.21x26 |
40/45 |
009756 |
|
| 3 |
Clamping wedge |
56x13.21x26 |
60 |
009757 |
|
| 3 |
Clamping wedge VariForm |
44x13.21x24.25 |
50/60 |
009760 |
|
| 4 |
Allen screw with ISK 5 |
M10x12 |
|
006044 |
|
| |
Allen Key |
SW 5, L100 |
|
117506 |
|
|
|
|
