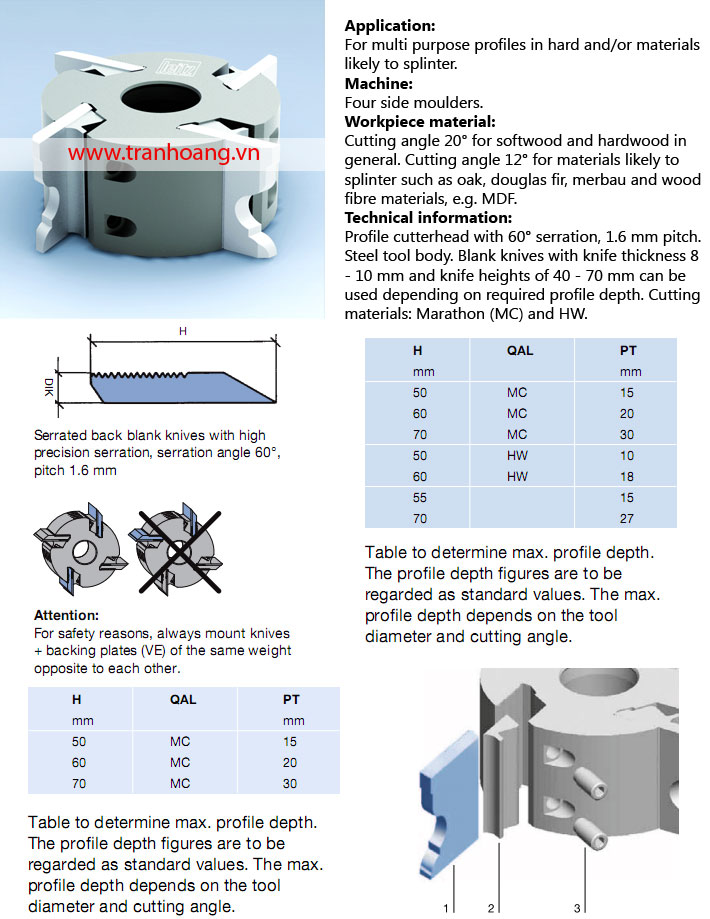

Profile cutterheads for serrated back blank knives TH-246-247
Giá: Liên hệ

Thông số kỹ thuật:
Cutting angle 20°
WM 501-2-05

TD
mm		 SB
mm		 BO
mm		 BO
in		 BOmax
mm		 Z nmax
min-1		 ID
122 80 40   40 2 9 000 135805
122 40 40   40 4 9 000 135802
122 60 35   40 4 9 000 135806
122 60 38.1 1 1/2″ 40 4 9 000 135807
122 60 40   40 4 9 000 135808
122 80 40   40 4 9 000 135809
122 100 35   40 4 9 000 135810
122 100 38.1 1 1/2″ 40 4 9 000 135811
122 100 40   40 4 9 000 135812
122 130 40   40 4 9 000 135814
122 150 40   40 4 9 000 135817
122 170 40   40 4 9 000 135816
122 180 40   40 4 9 000 135819
122 230 35   40 4 9 000 135820
122 230 40   40 4 9 000 135821
122 240 40   40 4 9 000 135822
137 60 40   50 4 8 500 135823
137 60 46.04 1 13/16″ 50 4 8 500 135824
137 60 50   50 4 8 500 135825
137 80 50   50 4 8 500 135826
137 100 40   50 4 8 500 135827
137 100 46.04 1 13/16″ 50 4 8 500 135828
137 100 50   50 4 8 500 135829
137 130 40   50 4 8 500 135830
137 130 50   50 4 8 500 135831
137 150 40   50 4 8 500 135832
137 150 50   50 4 8 500 135833
137 180 50   50 4 8 500 135836
137 230 50   50 4 8 500 135838
Cutterhead without knives. For blank knives in different dimensions and qualities, see section 9 Knives and spare parts.
Cutting angle 12°
WM 501-2-05

TD
mm		 SB
mm		 ND
mm		 BO
mm		 Z ID
122 40 40 40 4 135840
122 60 60 40 4 135841
122 80 80 40 4 135842
122 130 130 40 4 135843
Cutterhead without knives. For blank knives in different dimensions and qualities, see section 9 Knives and spare parts
Spare parts

Part-no. BEZ ABM
mm		 ID
2 Clamping wedge 38x25.3x10.8 620700
2 Clamping wedge 58x25.3x10.8 620701
2 Clamping wedge 78x25.3x10.8 620702
2 Clamping wedge 98x25.3x10.8 620703
2 Clamping wedge 128x25.3x10.8 620705
2 Clamping wedge 148x25.3x10.8 620706
2 Clamping wedge 168x25.3x10.8 620707
2 Clamping wedge 178x25.3x10.8 620708
2 Clamping wedge 228x25.43x11 620709
2 Clamping wedge 238x25.3x10.8 620710
3 Allen screw M10x1x20 007396
  Filler piece 40x30x8 005305
  Filler piece 60x30x8 005306
  Filler piece 80x30x8 005307
  Filler piece 100x30x8 005308
  Filler piece 130x30x8 005310
  Filler piece 150x30x8 005311
  Filler piece 170x30x8 620770
  Filler piece 180x30x8 005312
  Filler piece 230x30x8 005313
  Filler piece 240x30x8 620771
  Allen Key SW 5 117509
