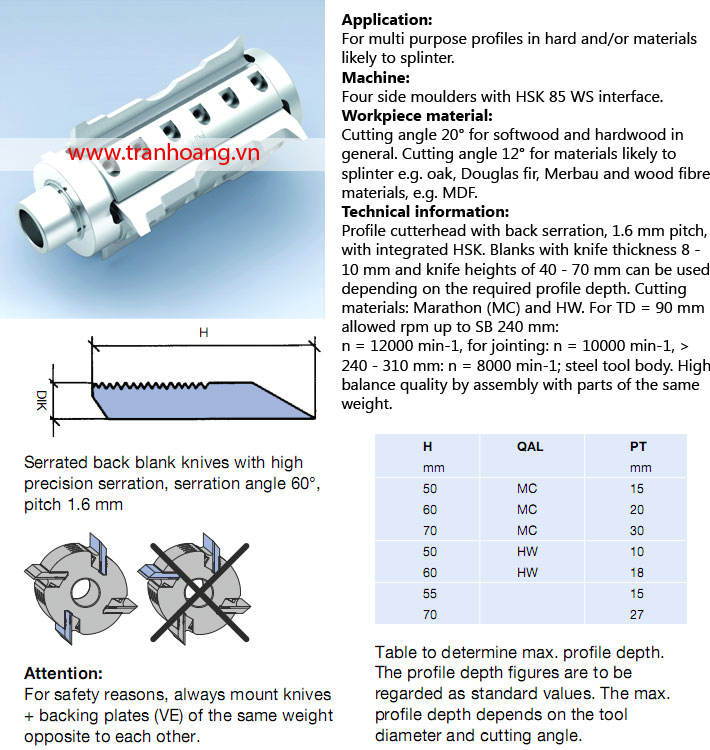

Profile cutterhead with HSK 85 WS for serrated back blank knives TH-252-253
Giá: Liên hệ

Thông số kỹ thuật:
Cutting angle 12°
WP 510-2-02

  TD
mm		 SB
mm		 A
mm		 Z nmax
min-1		 ID
LL / on bottom		   ID
RL / on top
  90 40 26 2 12 000 136248   136249
  90 60 26 2 12 000 136250   136251
  90 80 26 2 12 000 136252   136253
  90 100 26 2 12 000 136254   136255
  90 130 26 2 12 000 136256   136257
  90 150 26 2 12 000 136258   136259
* 90 170 26 2 12 000 136260   136261
* 90 190 26 2 12 000 136262   136263
* 90 210 26 2 12 000 136264   136265
* 90 240 26 2 12 000 136266   136267
* 90 270 26 2 8 000 136268   136269
* 90 310 26 2 8 000 136294   136295
  90 40 26 4 12 000 136270   136271
  90 60 26 4 12 000 136272   136273
  90 80 26 4 12 000 136274   136275
  90 100 26 4 12 000 136276   136277
  90 130 26 4 12 000 136278   136279
  90 150 26 4 12 000 136280   136281
* 90 170 26 4 12 000 136282   136283
* 90 190 26 4 12 000 136284   136285
* 90 210 26 4 12 000 136286   136287
* 90 240 26 4 12 000 136288   136289
* 90 270 26 4 8 000 136290   136291
* 90 310 26 4 8 000 136292   136293
  115 80 26 6 10 000 136192   136193
  115 130 26 6 10 000 136194   136195
  115 170 26 6 10 000 136196   136197
* = Not for PKS blank knives H = 70 mm with n = 12000 min-1

Cutterhead without knives. For blank knives in different dimensions and qualities, see section 9 Knives and spare parts.
Spare parts

BEZ for knife thickness for SB
mm		 ID
Clamping wedge 8/10 40 620816
Clamping wedge 8/10 60 620817
Clamping wedge 8/10 80 620818
Clamping wedge 8/10 100 620819
Clamping wedge 8/10 130 620820
Clamping wedge 8/10 150 620821
Clamping wedge 8/10 170 620822
Clamping wedge 8/10 190 620823
Clamping wedge 8/10 210 620824
Clamping wedge 8/10 240 620825
Clamping wedge 8/10 270 620826
Clamping wedge 8/10 310 620827
Allen screw     007396
Filler piece   40 005305
Filler piece   60 005306
Filler piece   80 005307
Filler piece   100 005308
Filler piece   130 005310
Filler piece   150 005311
Filler piece   170 620770
Filler piece   190 620772
Filler piece   210 620773
Filler piece   240 620771
Filler piece   270 620774
Filler piece   310 620775
Dust protection cover     008244
Allen Key     117509
