| Minifinger joint cutter, Marathon, real Z 3/4 TH-275 |
|
|
| |
| Thông số kỹ thuật: |
ZL 20 mm, TG 6.2 mm, Z 3
WF 620-2-06
| Tool Type |
D
mm |
SB
mm |
ND
mm |
BO
mm |
Z |
ZA
PCS |
QAL |
ID
ZL 20/20 |
|
ID
ZL 20/22 |
|
| Top final cutter |
180 |
18.6 |
18.6 |
50 |
3 |
2 |
MC |
121800 |
|
121804 |
|
| Basic cutter |
180 |
31.0 |
18.6 |
50 |
3 |
3 |
MC |
120805 |
|
120807 |
|
| Bottom final cutter |
180 |
18.6 |
18.6 |
50 |
3 |
2 |
MC |
121801 |
|
121805 |
|
ZL 20 mm, TG 6.2 mm, Z 3, larger basic clearance
WF 620-2-06
| Tool Type |
D
mm |
SB
mm |
ND
mm |
BO
mm |
Z |
ZA
PCS |
QAL |
ID
ZL 20/20 |
|
ID
ZL 20/22 |
|
| Top final cutter |
180 |
18.6 |
18.6 |
50 |
3 |
2 |
MC |
121802 |
|
121806 |
|
| Basic cutter |
180 |
31.0 |
18.6 |
50 |
3 |
3 |
MC |
120806 |
|
120808 |
|
| Bottom final cutter |
180 |
18.6 |
18.6 |
50 |
3 |
2 |
MC |
121803 |
|
121807 |
|

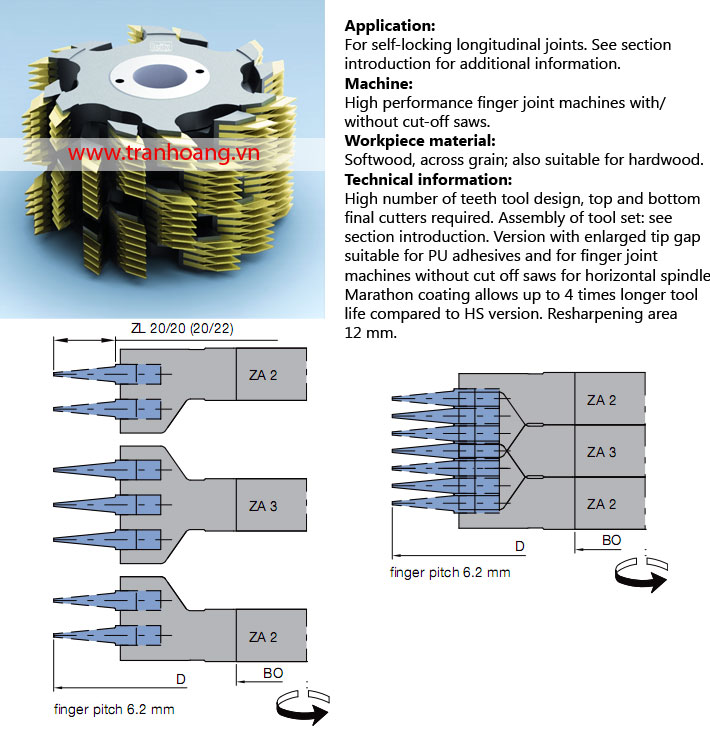

Finger lenght 10 and 15mm
TG: 3,8mm
Real : Z4
| |
|
Basic
cutter |
Final cutter
top |
Final cutter
bottom |
ZA
ND |
|
5
19 |
3
16.6 |
3
16.6 |
| HD |
KLH |
Cutter
quantity |
Cutter
quantity |
Cutter
quantity |
| 19 |
32.2 |
0 |
1 |
1 |
| 38 |
52.2 |
1 |
1 |
1 |
| 57 |
71.2 |
2 |
1 |
1 |
| 76 |
90.2 |
3 |
1 |
1 |
| 95 |
109.2 |
4 |
1 |
1 |
| 114 |
128.2 |
5 |
1 |
1 |
| 133 |
147.2 |
6 |
1 |
1 |
| 152 |
266.2 |
7 |
1 |
1 |
| 171 |
185.2 |
8 |
1 |
1 |
| 190 |
204.2 |
9 |
1 |
1 |
| 209 |
223.2 |
10 |
1 |
1 |
| 228 |
242.2 |
11 |
1 |
1 |
| 247 |
261.2 |
12 |
1 |
1 |
| 266 |
280.2 |
13 |
1 |
1 |
| 285 |
299.2 |
14 |
1 |
1 |
| 304 |
318.2 |
15 |
1 |
1 |
| 323 |
337.2 |
16 |
1 |
1 |
HD: wood thickness
KLH: clamping height
Finger lenght 20
TG: 6,2mm
Real : Z3
| |
|
Basic
cutter |
Final cutter
top |
Final cutter
bottom |
ZA
ND |
|
5
19 |
3
16.6 |
3
16.6 |
| HD |
KLH |
Cutter
quantity |
Cutter
quantity |
Cutter
quantity |
| 19 |
37.2 |
0 |
1 |
1 |
| 37 |
55.8 |
1 |
1 |
1 |
| 56 |
74.4 |
2 |
1 |
1 |
| 74 |
93 |
3 |
1 |
1 |
| 93 |
1116 |
4 |
1 |
1 |
| 112 |
130.2 |
5 |
1 |
1 |
| 130 |
148.8 |
6 |
1 |
1 |
| 149 |
167.4 |
7 |
1 |
1 |
| 167 |
186 |
8 |
1 |
1 |
| 186 |
204.6 |
9 |
1 |
1 |
| 205 |
223.2 |
10 |
1 |
1 |
| 223 |
241.8 |
11 |
1 |
1 |
| 242 |
260.4 |
12 |
1 |
1 |
| 260 |
279 |
13 |
1 |
1 |
| 279 |
297.6 |
14 |
1 |
1 |
| 298 |
316.2 |
15 |
1 |
1 |
| 316 |
334.8 |
16 |
1 |
1 |
HD: wood thickness
KLH: clamping height |
|
|
