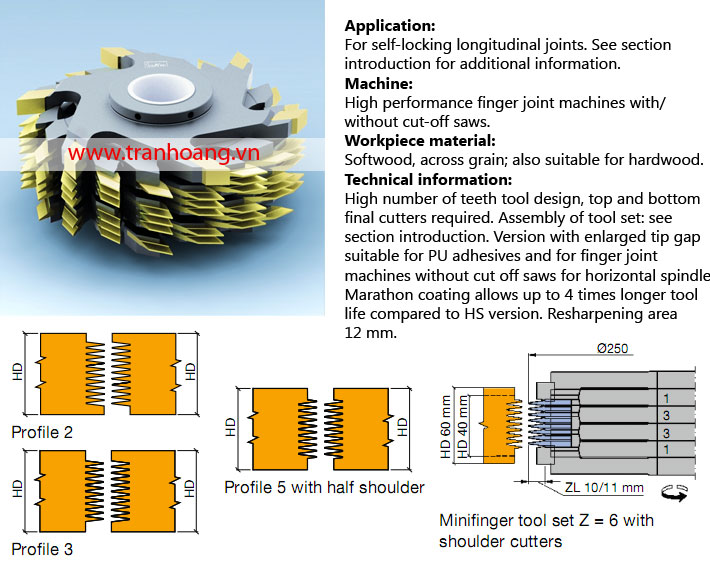

| Minifinger joint cutter and shoulder cutter, Marathon, real Z 6 TH-278 |
|
|
| |
| Thông số kỹ thuật: |
Basic- / extension cutter ZL 10/11 mm, TG 3.8 mm
WF 620-2-06
| Tool Type |
D
mm |
SB
mm |
ND
mm |
BO
mm |
Z |
ZA
PCS |
QAL |
DRI |
ID |
|
| Basic cutter |
250 |
20.2 |
11.2 |
60 |
6 |
3 |
MC |
RL |
120624 |
|
| Extension cutter |
250 |
5.0 |
11.2 |
60 |
6 |
1 |
MC |
LL |
121608 |
|
| Extension cutter |
250 |
5.0 |
11.2 |
60 |
6 |
1 |
MC |
RL |
121609 |
|
| Extension cutter |
250 |
12.6 |
11.2 |
60 |
6 |
2 |
MC |
LL |
121610 |
|
| Extension cutter |
250 |
12.6 |
11.2 |
60 |
6 |
2 |
MC |
RL |
121611 |
|
Shoulder cutter profile 2 and 3 for ZL 10/11 mm, TG 3.8 mm
WF 621-2-06
D
mm |
SB
mm |
BO
mm |
Z |
QAL |
ID
LL |
|
ID
RL |
|
| 249.7 |
12 |
60 |
6 |
MC |
122400 |
|
122401 |
|
Shoulder cutter profile 5 for ZL 10/11 mm, TG 3.8 mm
WF 621-2-06
D
mm |
SB
mm |
BO
mm |
Z |
QAL |
ID
LL |
|
ID
RL |
|
| 239.7 |
12 |
60 |
6 |
MC |
122402 |
|
122403 |
|
| 239 |
12 |
60 |
6 |
MC |
122404 |
|
122405 |
|
Clamping sleeve with threaded nut
TB 270-0
D
mm |
BO
mm |
NL
mm |
GL
mm |
ID
LL |
|
ID
RL |
|
| 60 |
50 |
85 |
110 |
029470 |
|
029471 |
|
Spacer
TR 100-0
D
mm |
B
mm |
BO
mm |
ID |
|
| 90 |
3.8 |
60 |
028447 |
|
| 90 |
11.4 |
60 |
028448 |
|
|
|
|
