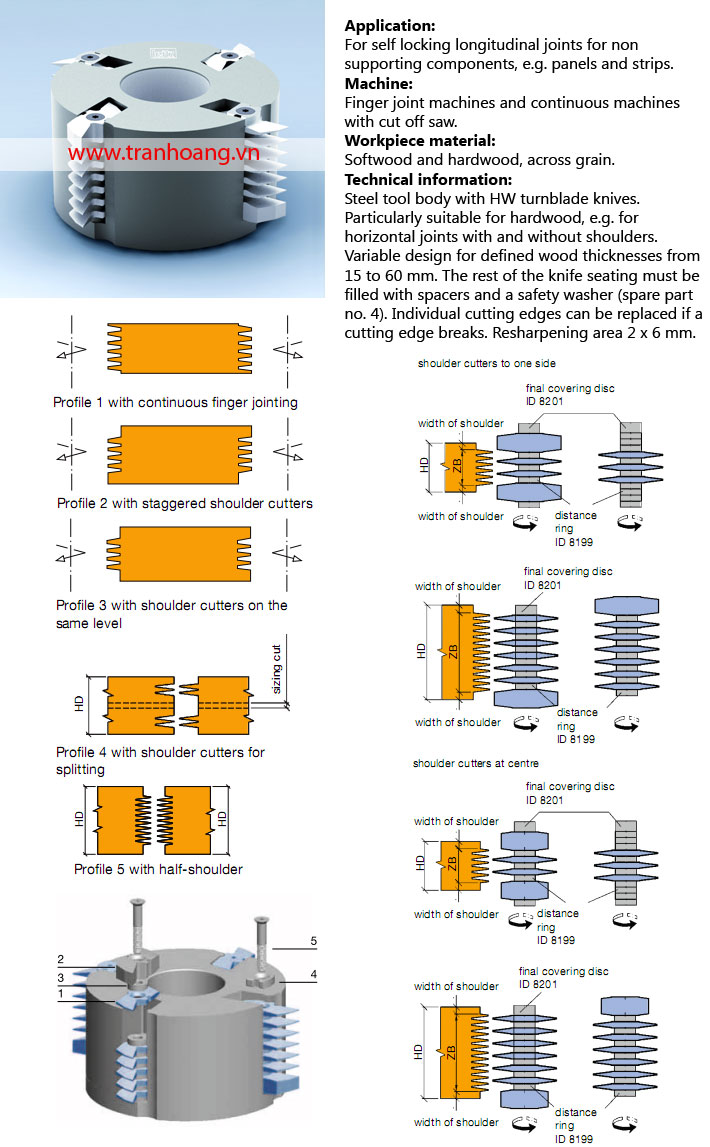

| Minifinger cutterhead with HW turnblade knives TH-286-287 |
|
|
| |
| Thông số kỹ thuật: |
Profile 1, ZL 10/11 mm, TG 3.8 mm
WM 620-2-01
D
mm |
SB
mm |
BO
mm |
Z |
HD
mm |
nmax
min-1 |
ID
LL |
|
ID
RL |
|
| 160 |
60 |
50 |
2/2 |
60 |
8 000 |
135001 |
|
135000 |
|
| 250 |
60 |
50 |
3/3 |
60 |
5 000 |
135005 |
|
135004 |
|
Profile 2, ZL 10/11 mm
WM 620-2-01
D
mm |
SB
mm |
BO
mm |
Z |
HD
mm |
nmax
min-1 |
ID
LL |
|
ID
RL |
|
| 160 |
60 |
50 |
2/2 |
20 - 32 |
8 000 |
135007 |
|
135006 |
|
| 160 |
60 |
50 |
2/2 |
30 - 42 |
8 000 |
135009 |
|
135008 |
|
| 160 |
60 |
50 |
2/2 |
40 - 49 |
8 000 |
135011 |
|
135010 |
|
| 160 |
60 |
50 |
2/2 |
50 - 57 |
8 000 |
135013 |
|
135012 |
|
| 250 |
60 |
50 |
3/3 |
20 - 32 |
5 000 |
135023 |
|
135022 |
|
| 250 |
60 |
50 |
3/3 |
30 - 42 |
5 000 |
135025 |
|
135024 |
|
| 250 |
60 |
50 |
3/3 |
40 - 49 |
5 000 |
135027 |
|
135026 |
|
| 250 |
60 |
50 |
3/3 |
50 - 57 |
5 000 |
135029 |
|
135028 |
|
Profile 3, ZL 10/11 mm
WM 620-2-01
D
mm |
SB
mm |
BO
mm |
Z |
HD
mm |
nmax
min-1 |
ID
LL |
|
ID
RL |
|
| 160 |
60 |
50 |
2/2 |
20 - 32 |
8 000 |
135031 |
|
135030 |
|
| 160 |
60 |
50 |
2/2 |
30 - 42 |
8 000 |
135033 |
|
135032 |
|
| 160 |
60 |
50 |
2/2 |
40 - 49 |
8 000 |
135035 |
|
135034 |
|
| 160 |
60 |
50 |
2/2 |
50 - 57 |
8 000 |
135037 |
|
135036 |
|
| 250 |
60 |
50 |
3/3 |
20 - 32 |
5 000 |
135047 |
|
135046 |
|
| 250 |
60 |
50 |
3/3 |
30 - 42 |
5 000 |
135049 |
|
135048 |
|
| 250 |
60 |
50 |
3/3 |
40 - 49 |
5 000 |
135051 |
|
135050 |
|
| 250 |
60 |
50 |
3/3 |
50 - 57 |
5 000 |
135053 |
|
135052 |
|
Attention: When assembling, always finish by fitting spacers with the securing device (spare part no. 4).
Spare knives
| Part-no. |
BEZ |
P |
ZL
mm |
SB
mm |
TG |
QAL |
ID |
|
| 1 |
Minifinger knife |
|
10/11 |
3.8 |
3.8 |
HW |
618002 |
|
| 2 |
Shoulder knife |
2. 3. 4 |
10/11 |
11.4 |
3.8 |
HW |
618005 |
|
| 2 |
Shoulder knife |
5 |
10/11 |
11.4 |
3.8 |
HW |
618006 |
|
Spare parts
| Part-no. |
BEZ |
ABM
mm |
ID |
|
| 3 |
Spacer for ZL 10/11 |
13x3.8x6.1 |
008199 |
|
| 4 |
Spacer |
15x17x5 |
008230 |
|
| 5 |
Countersink screw, Torx® 20 |
M6x40 |
006090 |
|
| 5 |
Countersink screw, Torx® 20 |
M6x50 |
007856 |
|
| 5 |
Countersink screw, Torx® 20 |
M6x65 |
007882 |
|
| 5 |
Countersink screw, Torx® 20 |
M6x70 |
007880 |
|
| |
Torx® key |
Torx® 20 |
006091 |
|
HD from to
mm |
ZB
mm |
ZA |
Half-shoulder (HS)
mm |
| 16 - 22 |
9.4 |
3 |
3.3 - 6.3 |
| 19 - 25 |
13.2 |
4 |
2.9 - 5.9 |
| 23 - 29 |
17 |
5 |
3.0 - 6.0 |
| 27 - 33 |
20.8 |
6 |
3.1 - 6.1 |
| 31 - 37 |
24.6 |
7 |
3.2 - 6.2 |
| 35 - 41 |
28.4 |
8 |
3.3 - 6.3 |
| 38 - 44 |
32.2 |
9 |
2.9 - 5.9 |
| 42 - 48 |
36 |
10 |
3.0 - 6.0 |
| 46 - 52 |
39.8 |
11 |
3.1 - 6.1 |
| 50 - 56 |
43.6 |
12 |
3.2 - 6.2 |
HD from to
mm |
ZB
mm |
ZA |
Shoulder (S)
mm |
| 17 - 23 |
10.7 |
3 |
|
| 21 - 27 |
14.5 |
4 |
3.2 - 6.2 |
| 25 - 31 |
18.3 |
5 |
3.3 - 6.3 |
| 29 - 35 |
22.1 |
6 |
3.4 - 6.4 |
| 33 - 39 |
25.9 |
7 |
3.5 - 6.5 |
| 36 - 42 |
29.7 |
8 |
3.1 - 6.1 |
| 40 - 46 |
33.5 |
9 |
3.2 - 6.2 |
| 44 - 50 |
37.3 |
10 |
3.3 - 6.3 |
| 48 - 54 |
44.1 |
11 |
3.4 - 6.4 |
| 52 - 58 |
44.9 |
12 |
3.5 - 6.5 |
|
|
|
