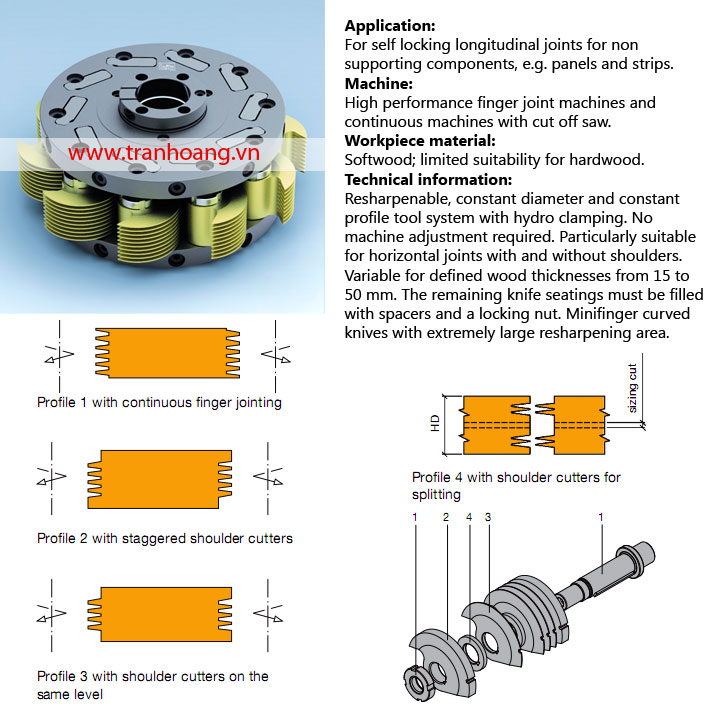

| Hydro minifinger cutterhead TurboHawk with curved knives TH-290 |
|
|
| |
| Thông số kỹ thuật: |
With curved knives ZL 10/11 mm, TG 3.8 mm
HM 620-2-05
| P |
D
mm |
BO
mm |
HDmax
mm |
Z |
QAL |
nmax
min-1 |
ID
LL |
|
ID
RL |
|
| 1 |
266.67 |
50 |
50 |
5/5 |
HS |
4 000 |
135500 |
|
135501 |
|
| 2 |
266.67 |
50 |
50 |
5/5 |
HS |
4 000 |
135508 |
|
135509 |
|
| 3 |
266.67 |
50 |
50 |
5/5 |
HS |
4 000 |
135516 |
|
135517 |
|
Please note the spindle arrangement. Arrangement for other wood thicknesses on request.
Spare knives
| Part-no. |
BEZ |
ABM
mm |
ID
HS |
|
ID
MC |
|
| 3 |
Minifinger knife ZL 10/11 |
38.1x3.8x19.05. KN |
618200 |
|
618220 |
|
| 2 |
Shoulder knife |
38.1x11.4x19.05. KN |
618250 |
|
618269 |
|
Spare parts
| Part-no. |
BEZ |
ABM
mm |
ID |
|
| |
Setting gauge |
D266,67x80 |
005377 |
|
| 1 |
Clamping arbor |
HD 50 mm KL 55 mm |
008226 |
|
| 1 |
Clamping arbor |
HD 38 mm KL 43 mm |
008227 |
|
| 1 |
Clamping arbor |
HD 32 mm KL 34,5 mm |
008228 |
|
| 1 |
Clamping arbor |
HD 25 mm KL 29 mm |
008229 |
|
| |
Sickle spanner |
34/36 DIN 1810 A |
117510 |
|
| |
Screw driver |
SW 6, L50 |
117508 |
|
| 4 |
Filler piece for rounding knives |
33x3.8x19.05.KN1.8x4.2 |
008223 |
|
|
|
|
