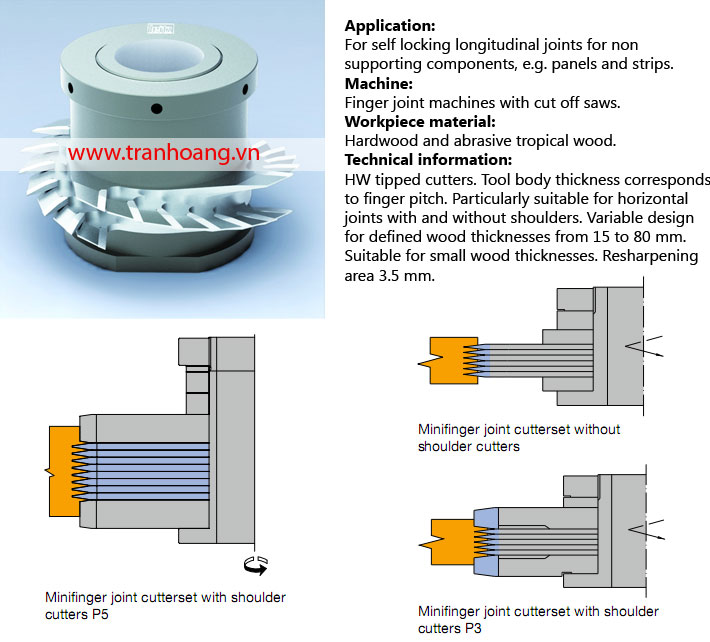

| Minifinger disc cutter, HW with and without shoulder cutter TH-292 |
|
|
| |
| Thông số kỹ thuật: |
HW, ZL 10/11 mm, TG 3.8 mm
WF 624-2, WF 621-2
| Tool Type |
D
mm |
SB
mm |
BO
mm |
Z |
nmax
min-1 |
ID |
|
| Minifinger joint cutter |
160 |
3.8 |
70 |
2 |
9 000 |
022200 |
|
| Minifinger joint cutter |
160 |
3.8 |
70 |
4 |
9 000 |
021511 |
|
| Minifinger joint cutter |
250 |
3.8 |
70 |
6 |
6 000 |
021513 |
|
| Shoulder cutter |
159.8 |
15.2 |
70 |
4 |
9 000 |
021762 |
|
| Shoulder cutter P3 |
249.7 |
15.2 |
70 |
6 |
6 000 |
021764 |
|
| Shoulder cutter P5 |
239.7 |
15.2 |
70 |
6 |
6 000 |
022153 |
|
| Shoulder cutter P5 |
239 |
15.2 |
70 |
6 |
6 000 |
022154 |
|
HW, ZL 10/11.5 mm, TG 4.0 mm
WF 624-2, WF 621-2
| Tool Type |
D
mm |
SB
mm |
BO
mm |
Z |
nmax
min-1 |
ID |
|
| Minifinger joint cutter |
160 |
4 |
70 |
2 |
9 000 |
021509 |
|
| Minifinger joint cutter |
160 |
4 |
70 |
4 |
9 000 |
021517 |
|
| Shoulder cutter |
159.8 |
16 |
70 |
4 |
9 000 |
021769 |
|
HW, ZL 10/11.5 mm, TG 4.0 mm, up to wood thickness 50 mm
WF 624-2, WF 621-2
| Tool Type |
D
mm |
SB
mm |
BO
mm |
Z |
nmax
min-1 |
ID |
|
| Minifinger joint cutter |
160 |
4 |
70 |
2 |
9 000 |
022203 |
|
| Shoulder cutter |
159.9 |
16 |
70 |
2 |
9 000 |
022204 |
|
Clamping element with threaded nut
TB 270-0
D
mm |
BO
mm |
NL
mm |
GL
mm |
ID
LL |
|
ID
RL |
|
| 70 |
50 |
120 |
146 |
029694 |
|
029695 |
|
| 70 |
50 |
80 |
110 |
029472 |
|
029473 |
|
Spare parts
| BEZ |
ABM
mm |
D
mm |
ID |
|
| Mounting arbor |
D100 |
50 |
079007 |
|
| Sickle spanner adjustable |
D90/155; L290; DIN1816; tenon 6 |
|
005462 |
|
|
|
|
