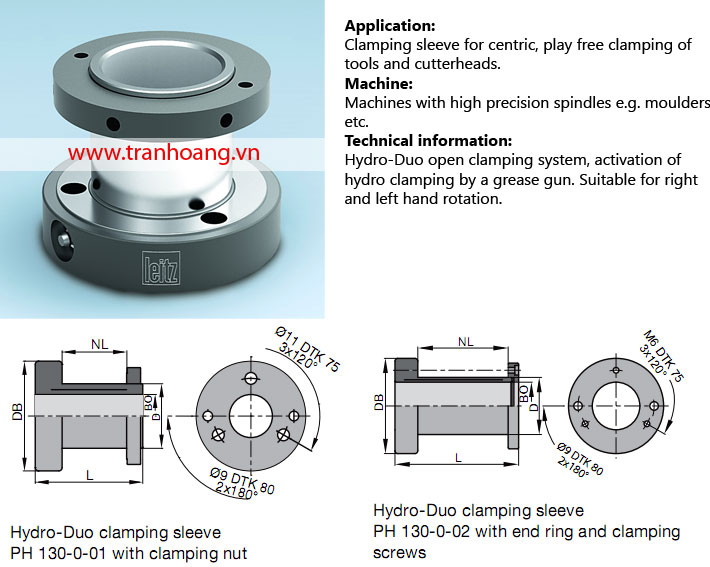

For spindle without safety device against twisting TH-572
Giá: Liên hệ

Thông số kỹ thuật:
With clamping nut
PH 130-0-01

D
mm		 BO
mm		 NL
mm		 L
mm		 DB
mm		 ID
60 40 60 100 102 030503
60 45 60 100 102 030505
60 50 60 100 102 030507
60 50 40 80 102 030515
Spare parts

BEZ ABM
mm		 ID
Allen Key SW 5 005452
Sickle spanner adjustable D60/90; L250; DIN1816; tenon 6 005461
Sickle spanner adjustable D90/155; L290; DIN1816; tenon 6 005462
Grease gun   008239
Grease cartridge for Hydro sleeve 007934
Grease nipple M10x1 007935
Cylindrical screw with ISK M6x70 005936
With end ring and clamping screws
PH 130-0-02

D
mm		 BO
mm		 NL
mm		 L
mm		 DB
mm		 ID
50 40 95 130 92 030600
60 45 35 55 102 030605
60 50 95 130 102 030602
Spare parts

BEZ ABM
mm		 ID
Allen Key SW 5 005452
Sickle spanner adjustable D90/155; L290; DIN1816; tenon 6 005462
Grease gun   008239
Grease cartridge for Hydro sleeve 007934
Grease nipple M10x1 007935
Cylindrical screw with ISK M6x70 005936
Cylindrical screw with ISK M6x120 005942
