For spindle without safety device against twisting TH-574
Giá: Liên hệ

Thông số kỹ thuật:

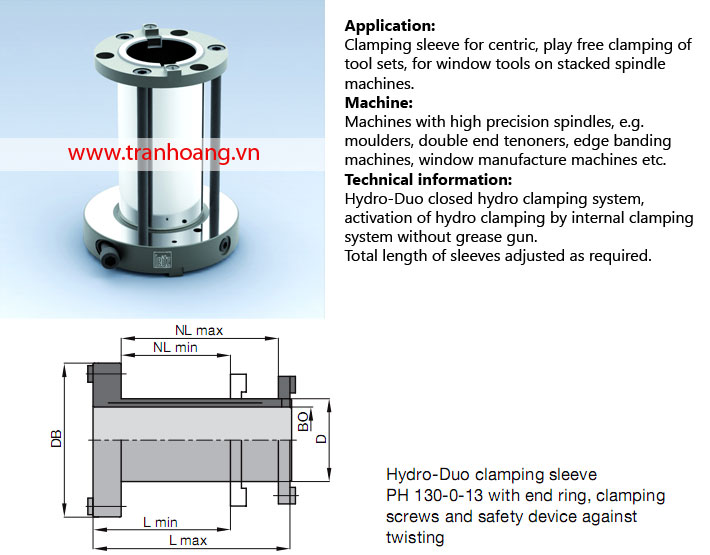

With end ring, clamping screws and safety device against twisting
PH 130-0-13

D
mm		 BO
mm		 NL
mm		 L
mm		 DB
mm		 ID
50 40 35 - 55 60 - 80 85 031658
50 40 55 - 75 80 - 100 85 031659
50 40 75 - 95 100 - 120 85 031660
60 40 95 - 115 120 - 140 93 031661
60 50 35 - 55 60 - 80 93 031655
60 50 55 - 75 80 - 100 93 031652
60 50 75 - 95 100 - 120 93 031653
60 50 95 - 115 120 - 140 93 031654
60 50 115 - 135 140 - 160 93 031657
Spare parts

BEZ ABM
mm		 BEM ID
Cylindrical screw with ISK M6x50   005932
Cylindrical screw with ISK M6x70   005936
Cylindrical screw with ISK M6x90   005939
Cylindrical screw with ISK M6x100   005940
Cylindrical screw with ISK M6x110   005941
Cylindrical screw with ISK M6x130   006542
Cylindrical screw with ISK M6x150   006400
Countersink screw with slot M4x6 for feather key 1 005752
Countersink screw with slot M4x10 for feather key 2,3,4 005753
Feather key 1 19x8x7   008525
Feather key 2 10x8.5x6.5   008526
Feather key 3 19x8x3.5   008527
Feather key 4 19x8x7   008528
Allen Key SW 5   005452
End ring with safety device against twisting
TR 112-0

D
mm		 BO
mm		 TK
mm		 DIK
mm		 ID
85 50 65 8 008245
93 60 75 8 008222
