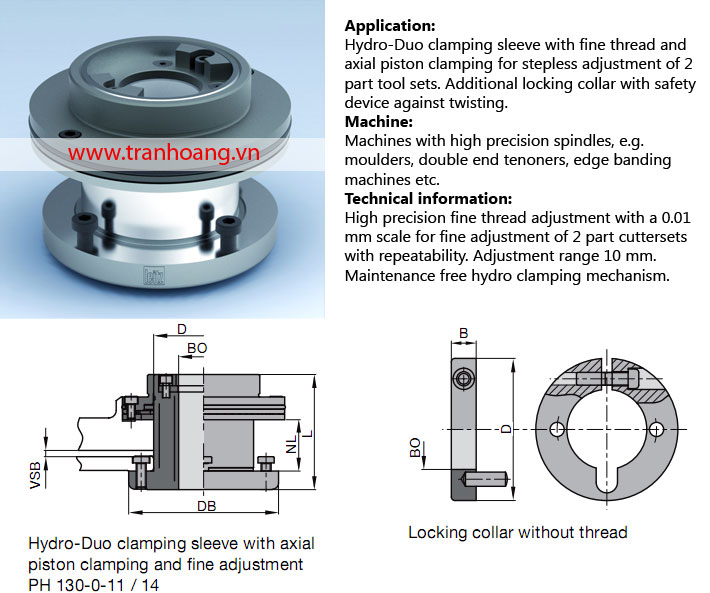

For spindle without safety device against twisting Hydro-Duo clamping sleeve with stepless fine adjustment of 2 part tool sets TH-575
Giá: Liên hệ

Thông số kỹ thuật:
With Hydro-Duo 2 chamber axial piston clamping and fine adjustment
PH 130-0-11

D
mm		 BO
mm/in		 L
mm		 DB
mm		 VSB
mm		 ID
80 40 117 120 10 031555
80 45 117 120 10 031556
80 46.04/1 13/15″ 117 120 10 031557
100 50 117 140 10 030566
100 53.97/2 1/8″ 117 140 10 031552
Spare parts

BEZ ABM
mm		 ID
Allen Key SW 5 005452
Locking collars without thread
TD 870-0

D
mm		 B
mm		 BO
mm/in		 ID
80 14 40 030713
80 14 45 030714
80 14 46.04/1 13/15″ 030715
80 14 50 030716
80 14 53.97/2 1/8″ 030717
