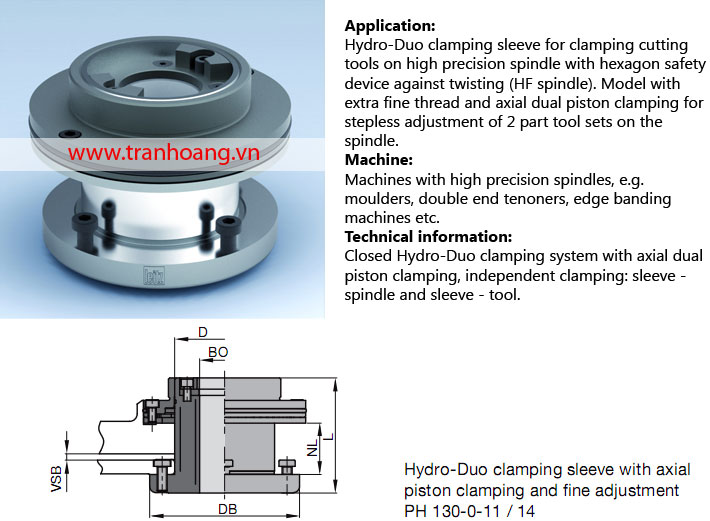

For spindle with safety device against twisting - hexagon HF spindle Hydro-Duo clamping sleeve, adjustable TH-580
Giá: Liên hệ

Thông số kỹ thuật:
With dual piston clamping and hexagon safety device against twisting, fine adjustment
PH 130-0-14

D
mm		 BO
mm		 NL
mm		 DB
mm		 VSB
mm		 ID
80 40 45 122 10 031554
Spare parts

BEZ ABM
mm		 ID
Allen Key SW 5 005452
