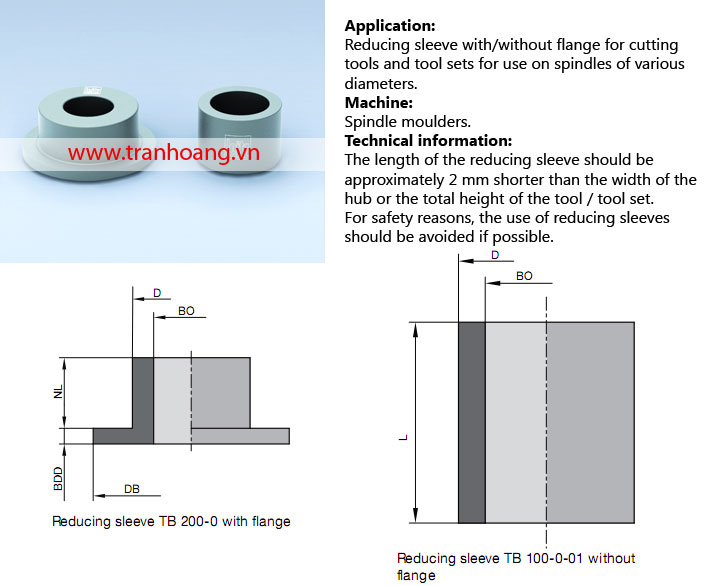

Reducing sleeve-TH584
Giá: Liên hệ

Thông số kỹ thuật:
With flange
TB 200-0

D
mm		 BO
mm/in		 DB
mm		 NL
mm		 BDD
mm		 ID
30 25 50 18 4 028201
35 30 55 18 5 028204
40 30 60 18 6 028206
40 35 60 18 6 028207
40 31.75/1 1/4″ 60 18 6 028220
50 30 70 18 6 028208
50 35 70 18 6 028210
50 40 70 18 6 028211
50 45 70 18 6 028209
60 30 80 18 6 028212
60 40 80 18 6 028214
60 50 80 18 6 028216
Without flange
TB 100-0-01

D
mm		 BO
mm		 L
mm		 ID
35 30 10 028290
35 30 40 028293
35 30 60 028294
35 30 96 028295
40 30 20 028296
40 30 40 028298
40 30 53 028300
40 30 60 028301
40 30 96 028302
40 35 30 028304
40 35 40 028305
40 35 60 028306
40 35 96 028307
50 40 96 028310
