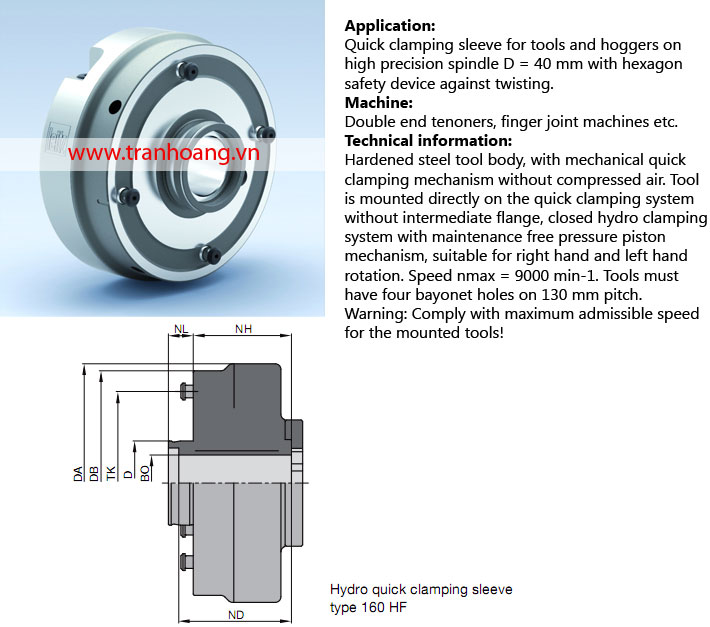

For spindle with safety device against twisting - hexagon HF spindle Quick clamping sleeve type 160 Hydro TH-585
Giá: Liên hệ

Thông số kỹ thuật:
For tools and hoggers
PH 110-0-01

BEM DA
mm		 DB
mm		 D
mm		 ND
mm		 NH
mm		 NL
mm		 BO
mm		 TK
mm		 Clamping bolts
PCS		 ID
For HF-spindle with hexagon 170 160 60 80 70 17.7 40 130 4 150100
Spare parts

BEZ ABM
mm		 ID
Securing part for HF-spindle HF 40 066473
Hexagon key SW 6 117516
Spindle securing part consists of:
Conical spring washer, clamping screw, hexagon spanner, brace.
