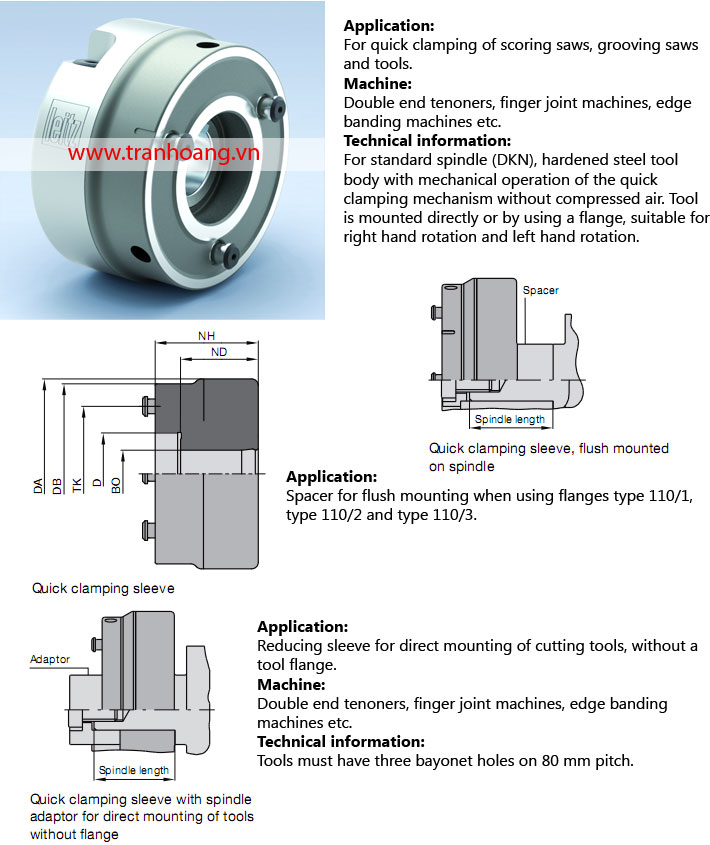

For spindle with safety device against twisting - keyway Quick clamping sleeve type 110 TH-587
Giá: Liên hệ

Thông số kỹ thuật:
For scoring saws and tools
PM 110-0-01

DA
mm		 DB
mm		 D
mm		 ND
mm		 NH
mm		 BO
mm		 DKN
mm		 TK
mm		 Clamping bolts
PCS		 ID
116 110 50 47.5 63 30 8x3 80 3 150000
Spare parts

BEZ Machine ID
LL		     ID
RL
Securing part IMA 066477     066477
Securing part Homag 066541     066540
Hexagon key       117516
Spindle securing part consists of:
Conical spring washer, clamping nut or clamping screw, spanner or hexagon spanner, brace.
Spacer for flush mounting
TR 111-0

Machine ABM
mm		 ABM-spindle
mm		 ID
Homag, IMA 60x26x30.DKN 30 DKN x68 028800
Spindle adaptor for direct mounting
TB 100-0

Machine ABM
mm		 ABM-spindle
mm		 ID
Homag left
IMA		 50x41x30.DKN 30 DKN x68 028850
Homag right 50x41x30.DKN   028854
