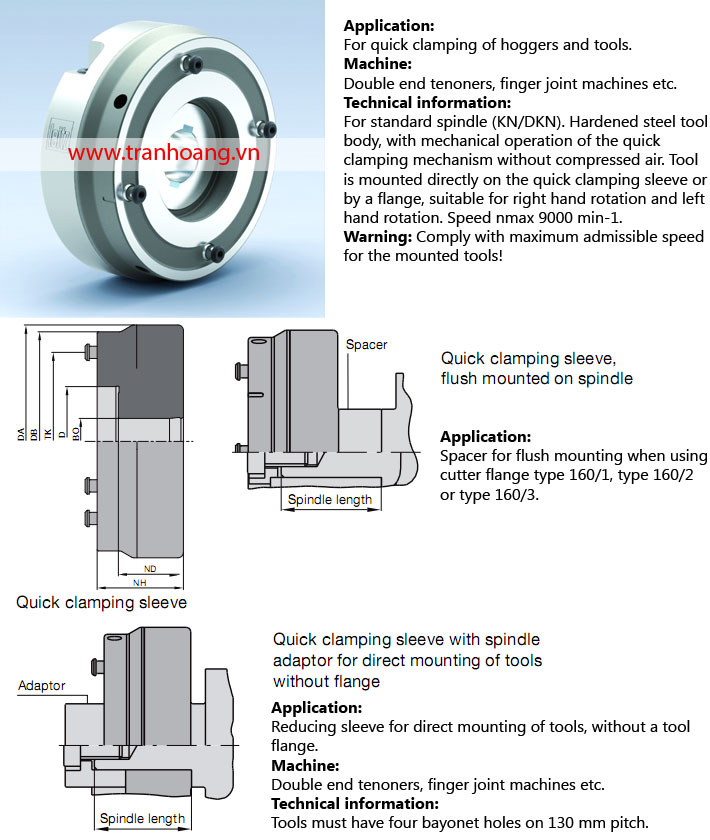

For spindle with safety device against twisting - keyway Quick clamping sleeve type 160 TH-589
Giá: Liên hệ

Thông số kỹ thuật:
For tools and hoggers
PM 110-0-01

DA
mm		 DB
mm		 D
mm		 ND
mm		 NH
mm		 BO
mm		 TK
mm		 Clamping bolts
PCS		 ID
170 160 80 47.5 63 35 DKN 130 4 150001
170 160 80 47.5 63 40 DKN 130 4 150008
Spare parts

Machine BEZ ID
LL		 ID
RL
Homag Securing part 066460 066461
IMA Securing part 066556 066556
  Hexagon key   117516
Spindle securing part consists of:
Conical spring washer, clamping nut or clamping screw, spanner or hexagon spanner, brace.

Spacer for flush mounting
TR 111-0, AT 100-0

Machine Type ABM
mm		 ABM-spindle
mm		 ID
IMA 160/1 60x35x35.DKN 35 DKNx93 028801
Homag 160/1 60x30x35.DKN 35 DKNx70 028802
IMA 160/2 - 3 60x15/20x35.DKN 35 DKNx93 028803
Homag 160/2 - 3 60x10/20x35.DKN 35 DKNx70 028804
Spindle adaptor for direct mounting
TB 100-0

Machine ABM mm ABM-spindle mm ID
IMA 60x41x35.DKN 35 DKNx93 028851
Homag left 60x41x35.DKN 35 DKNx70 028852
Homag right 60x41x35.DKN 35 DKNx70 028853
