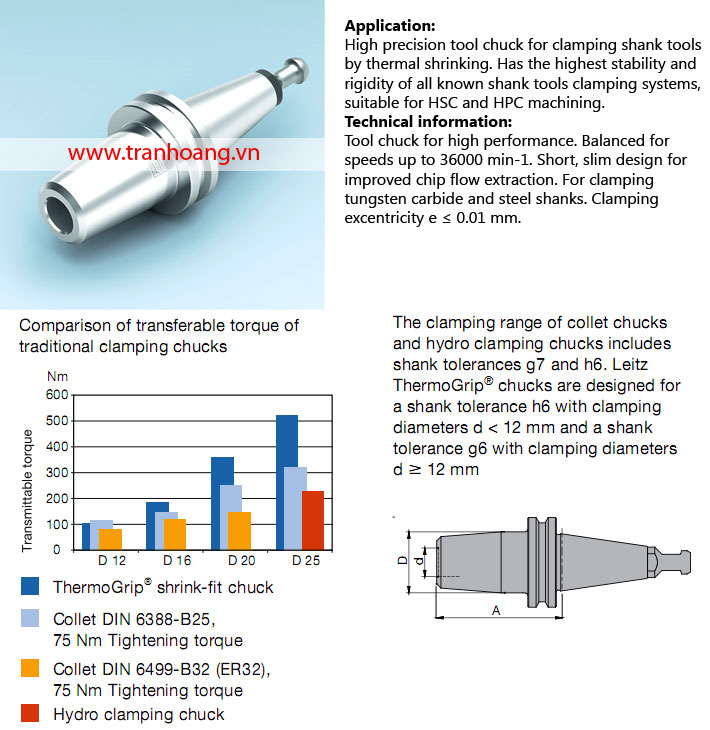

Shrink-fit chuck ThermoGrip® Tapered TH-592
Giá: Liên hệ

Thông số kỹ thuật:
SK 30, DIN 69871
PT 301-0

Machine d
mm		 D
mm		 A
mm		 Length adj.
mm		 STO Weight
kg		 ID
MAKA, Weeke, 12 34 70 7 g6 0,7 670200
Reichenbacher 16 34 70 7 g6 0,7 670201
  20 42 70 7 g6 0,8 670202
  25 42 80 7 g6 1.0 670210
Biesse from YOM 9/92 on, 12 34 70 7 g6 0,7 670203
Elumatec, Emmegi 16 34 70 7 g6 0,7 670204
SK 40, DIN 69871
PT 302-0

Machine d
mm		 D
mm		 A
mm		 Length adj.
mm		 STO Weight
kg		 ID
Homag, IMA, 12 34 70 7 g6 1.1 670206
MAKA, 16 34 70 7 g6 1.1 670207
Reichenbacher, 20 42 70 7 g6 1.2 670208
SCM 25 42 80 7 g6 1.2 670209
