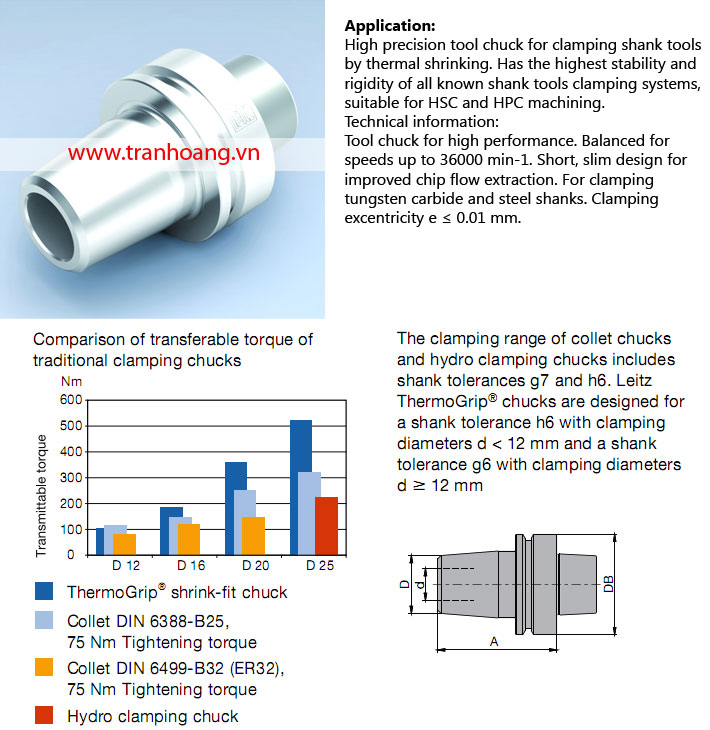

Shrink-fit chuck ThermoGrip® with hollow taper shank TH-593
Giá: Liên hệ

Thông số kỹ thuật:
HSK-E 63, DIN 69893
PT 300-0

Machine d
mm		 D
mm		 A
mm		 STO Weight
kg		 ID
Biesse, CMS, 8 27 75 h6 0,9 670002
CML, Weinig, 10 32 75 h6 0,9 670003
Working process 12 34 75 h6 0,9 670004
and others 14 34 75 h6 0,9 670005
  16 34 75 h6 0,9 670006
  18 42 75 h6 1.0 670007
  20 42 75 h6 1.0 670008
  25 42 75 h6 1.0 670009

HSK-F 63, DIN 69893
PT 300-0

Machine d
mm/in		 D
mm		 A
mm		 STO Weight
kg		 ID
With chip		   ID
Without chip
Biesse, Homag, 6 27 75 h6 0,8 037753   037713
Holz Her, IMA, 8 27 75 h6 0,8 037754   037714
MAKA, MKM, 9.53/3/8″ 32 75 h6 0,9 670013   670010
Reichenbacher, 10 32 75 h6 0,9 037755   037715
SCM, Weeke, 12 34 75 g6 0,9 037752   037712
Weinig, Elumatec, 12.7/1/2″ 34 75 h6 0,9 670014   670011
Emmegi 14 34 75 g6 0,9 037756   037716
and others 16 34 75 g6 0,9 037719   037709
  18 42 75 g6 1.0 037757   037718
  19.05/3/4″ 42 75 h6 0,9 670015   670012
  20 42 75 g6 1.0 037750   037710
  25 42 75 g6 0,9 037751   037711
  32 53 90 g6 1.2 670001   670000
