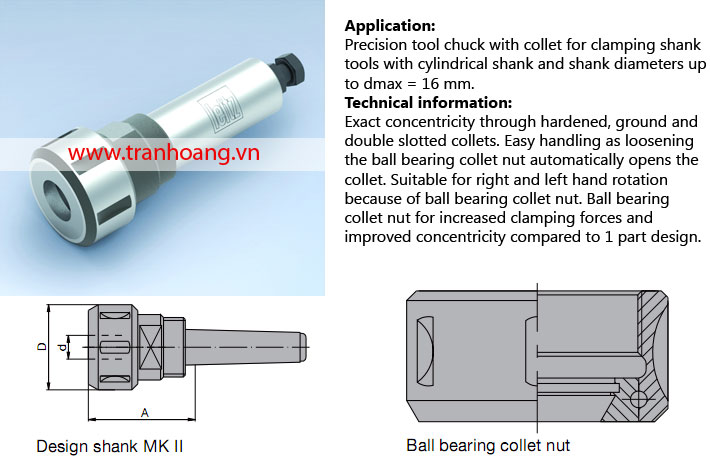

Precision collet chuck, cylindrical shank TH-598
Giá: Liên hệ

Thông số kỹ thuật:
Model with ball bearing collet nut
PM 350-0-03

D
mm		 d
mm		 GL
mm		 A
mm		 S
mm		 Type ID
35 6 - 12.7 77   25x50 1 671001
43 6 - 16 115 55 MK II/ M30 2 037493
43 6 - 16 108   25x60 2 037494
Sales unit consists of clamping chuck, collet nut and key, without collet

Spare parts

BEZ ABM
mm		 for S
mm		 ID
Type 1		   ID
Type 2
Collet (2°52')   6 679013   037473
Collet (2°52')   7 679015
Collet (2°52')   8 679016   037475
Collet (2°52')   9 679017   037476
Collet (2°52')   9.5     037477
Collet (2°52')   10 679019   037479
Collet (2°52')   11     037480
Collet (2°52')   12 679020   037481
Collet (2°52')   13     037483
Collet (2°52')   14     037485
Collet (2°52')   16     037486
Collet (2°52')   6.35 (1/4″) 679014   037474
Collet (2°52')   9.53 (3/8″) 679018   037478
Collet (2°52')   12.7 (1/2″) 679021   037482
Sickle spanner 34/36   005498
Sickle spanner 40/42       005469
Collet chuck nut M27x1,5   006653
Collet chuck nut with ball bearing M33x1,5       005685
