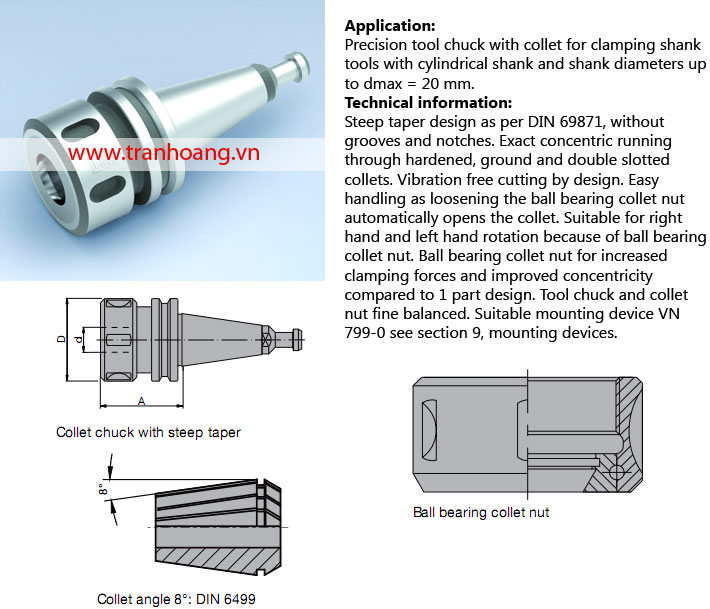

SK 30, A = 50 / 63 mm, clamping area 6-20 mm, 8° taper angle of the the collet
PM 350-0-04
| Machine |
D
mm |
d
mm |
A
mm |
S
mm |
Weight
kg |
ID |
|
Biesse from YOM 9/92 on,
Masterwood from YOM 1/99 on,
Emmegi, Schüco |
50 |
6 - 20 |
50 |
SK 30 |
0,6 |
037904 |
|
Biesse from YOM 9/92 on,
Masterwood from YOM 1/99 on,
Emmegi, Schüco |
50 |
6 - 20 |
63 |
SK 30 |
0,7 |
672001 |
|
Sales unit consists of clamping chuck with ball bearing collet nut, without collet or spanner.
Spare parts
| BEZ |
ABM
mm |
for S
mm |
ID |
|
| Collet (8°) |
|
6 |
037439 |
|
| Collet (8°) |
|
8 |
037440 |
|
| Collet (8°) |
|
10 |
037441 |
|
| Collet (8°) |
|
12 |
037442 |
|
| Collet (8°) |
|
13 |
037443 |
|
| Collet (8°) |
|
14 |
037444 |
|
| Collet (8°) |
|
16 |
037445 |
|
| Collet (8°) |
|
18 |
037446 |
|
| Collet (8°) |
|
20 |
037447 |
|
| Collet (8°) |
|
6.35 (1/4″) |
037509 |
|
| Collet (8°) |
|
9.53 (3/8″) |
037510 |
|
| Collet (8°) |
|
12.7 (1/2″) |
037511 |
|
| Collet (8°) |
|
15.88 (5/8″) |
037507 |
|
| Collet (8°) |
|
19.05 (3/4″) |
037506 |
|
| Sickle spanner |
45/50 |
|
005491 |
|
| Collet chuck nut with ball bearing |
M40x1,5 |
|
005718 |
|
|
