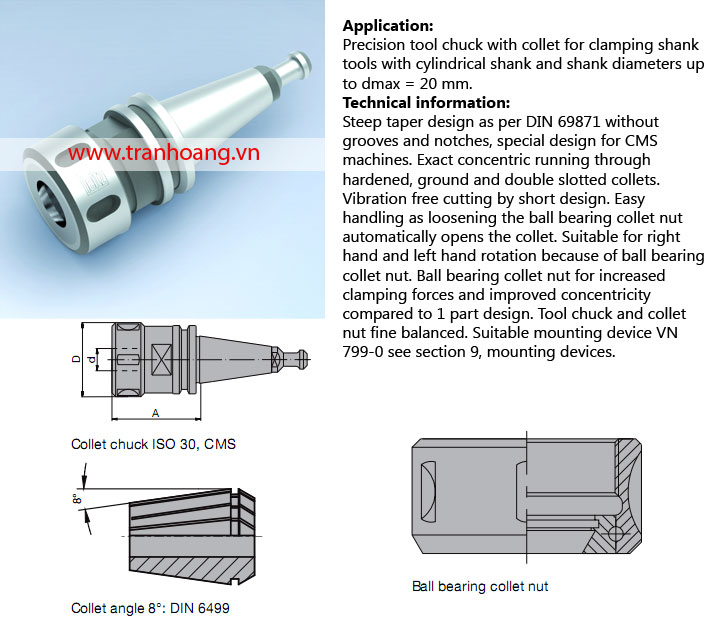

Collet chuck with steep taper ISO 30 for CMS TH-604
Giá: Liên hệ

Thông số kỹ thuật:
A = 60 mm, clamping range 6-20 mm
PM 350-0-11

Machine D
mm		 d
mm		 A
mm		 Weight
kg		 ID
CMS 50 6 - 20 60 0,6 037503
Sales unit consists of clamping chuck with ball bearing collet nut, without collet or spanner.

Spare parts

BEZ ABM
mm		 for S
mm		 ID
Collet (8°)   6 037439
Collet (8°)   8 037440
Collet (8°)   10 037441
Collet (8°)   12 037442
Collet (8°)   13 037443
Collet (8°)   14 037444
Collet (8°)   16 037445
Collet (8°)   18 037446
Collet (8°)   20 037447
Collet (8°)   6.35 (1/4″) 037509
Collet (8°)   9.53 (3/8″) 037510
Collet (8°)   12.7 (1/2″) 037511
Collet (8°)   15.88 (5/8″) 037507
Collet (8°)   19.05 (3/4″) 037506
Sickle spanner 45/50   005491
Collet chuck nut with ball bearing M40x1,5   005718
