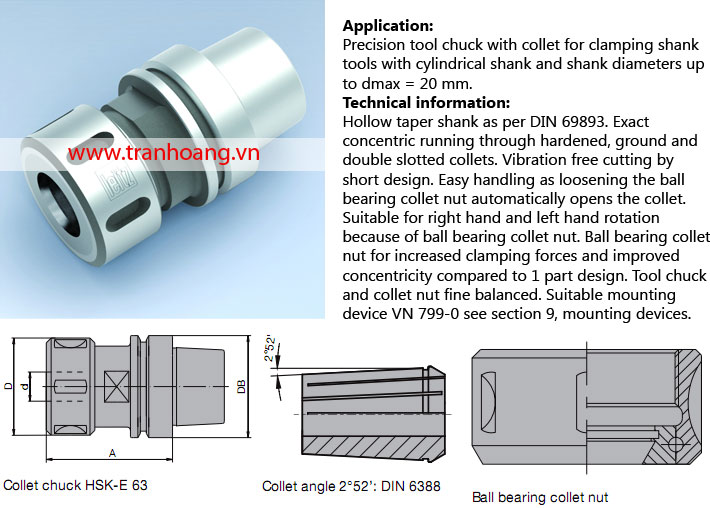

HSK-E 63, DIN 69893, A = 78 mm, clamping range 6-25.4 mm
PM 350-0-06
| Machine |
D
mm |
d
mm |
A
mm |
DB
mm |
Weight
kg |
ID |
|
Biesse, CML,
CMS, Weinig,
Working Process
and others |
60 |
6 - 25.4 |
78 |
63 |
1.1 |
037914 |
|
Sales unit consists of clamping chuck with ball bearing collet nut, without collet or spanner.
Spare parts
| BEZ |
ABM
mm |
for S
mm |
ID |
|
| Collet (2° 52') |
|
6 |
037429 |
|
| Collet (2° 52') |
|
8 |
037430 |
|
| Collet (2° 52') |
|
10 |
037431 |
|
| Collet (2° 52') |
|
12 |
037432 |
|
| Collet (2° 52') |
|
13 |
037433 |
|
| Collet (2° 52') |
|
14 |
037434 |
|
| Collet (2° 52') |
|
16 |
037435 |
|
| Collet (2° 52') |
|
18 |
037436 |
|
| Collet (2° 52') |
|
20 |
037437 |
|
| Collet (2° 52') |
|
25 |
037438 |
|
| Collet (2° 52') |
|
6.35 (1/4″) |
037495 |
|
| Collet (2° 52') |
|
9.53 (3/8″) |
037505 |
|
| Collet (2° 52') |
|
12.7 (1/2″) |
037496 |
|
| Collet (2° 52') |
|
15.88 (5/8″) |
037502 |
|
| Collet (2° 52') |
|
19.05 (3/4″) |
037497 |
|
| Collet (2° 52') |
|
25.4 (1″) |
037508 |
|
| Sickle spanner |
58/62 |
|
005458 |
|
| Collet chuck nut with ball bearing |
M48x2 |
|
005714 |
|
|
