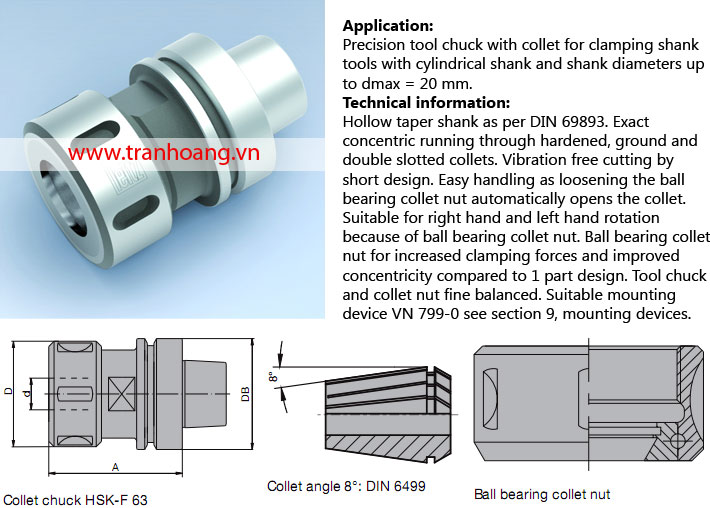

HSK-F 63, DIN 69893, A = 76 mm, clamping range 6-25.4 mm, short design, 8° taper angle of the collet
PM 350-0-15
| Machine |
D
mm |
d
mm |
A
mm |
DB
mm |
Weight
kg |
ID |
Biesse, Busellato,
Elumatec, Emmegi,
Morbidelli, SCM |
63 |
6 - 25.4 |
76 |
63 |
1 |
037970 |
Sales unit consists of clamping chuck with ball bearing collet nut, without collet or spanner.
Spare parts
| BEZ |
ABM
mm |
for S
mm |
ID |
|
| Collet (8°) |
|
6 |
037926 |
|
| Collet (8°) |
|
8 |
037927 |
|
| Collet (8°) |
|
10 |
037928 |
|
| Collet (8°) |
|
12 |
037929 |
|
| Collet (8°) |
|
14 |
037930 |
|
| Collet (8°) |
|
16 |
037931 |
|
| Collet (8°) |
|
20 |
037932 |
|
| Collet (8°) |
|
25 |
037933 |
|
| Collet (8°) |
|
6.35 (1/4″) |
037934 |
|
| Collet (8°) |
|
9.53 (3/8″) |
037935 |
|
| Collet (8°) |
|
12.7 (1/2″) |
037936 |
|
| Collet (8°) |
|
15.88 (5/8″) |
037937 |
|
| Collet (8°) |
|
19.05 (3/4″) |
037938 |
|
| Collet (8°) |
|
25.4 (1″) |
037939 |
|
| Sickle spanner |
58/62 |
|
005458 |
|
| Collet chuck nut with ball bearing |
M50x1,5 |
|
006639 |
|
| Chip-Balluff |
HSK-F 63 |
|
081309 |
|
|
