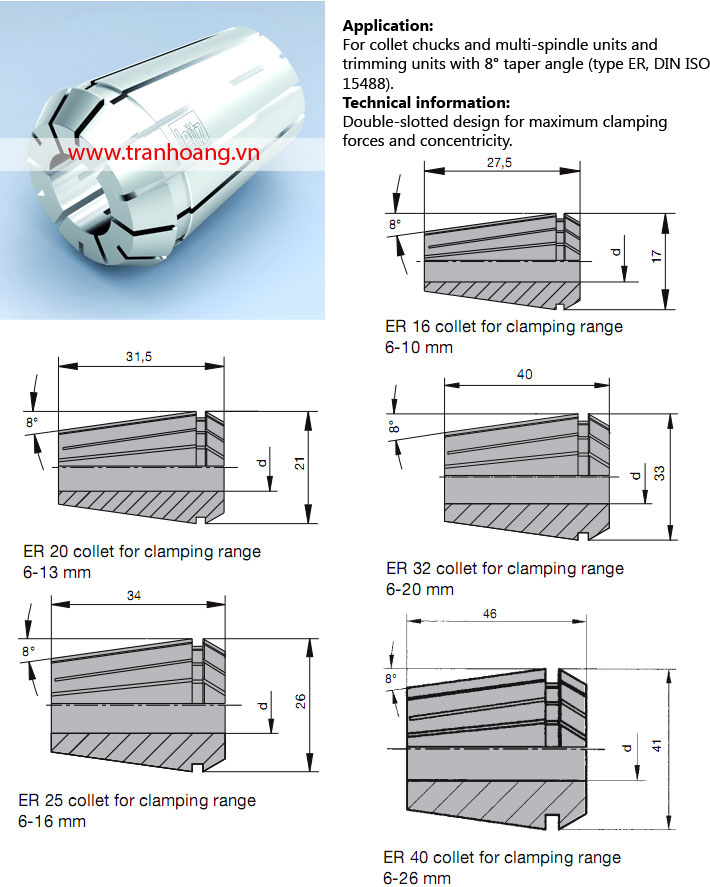

| Collets, type ER, DIN ISO 15488 TH-612-613 |
|
|
| |
| Thông số kỹ thuật: |
For clamping range 6-10 mm, ER 16, DIN ISO 15488
PM 150-0
| BEZ |
for S
mm |
ID |
|
| Collet (8°) |
6 |
037972 |
|
| Collet (8°) |
8 |
037973 |
|
| Collet (8°) |
10 |
037974 |
|
| Collet (8°) |
6.35 |
679022 |
|
| Collet (8°) |
9.53 |
679023 |
|
Spare parts
| BEZ |
ABM
mm |
D
mm |
Clamping range
mm |
DRI |
ID |
|
| Sickle spanner |
30/32 |
|
6 - 10 |
|
005516 |
|
| Collet chuck nut with ball bearing |
M22x1,5 |
32 |
6 - 10 |
RL |
006645 |
|
| Collet chuck nut with ball bearing |
M22x1,5 |
32 |
6 - 10 |
LL |
006646 |
|
For clamping range 6-13 mm, ER 20, DIN ISO 15488
PM 150-0
| BEZ |
for S
mm |
ID |
|
| Collet (8°) |
6 |
037975 |
|
| Collet (8°) |
8 |
037976 |
|
| Collet (8°) |
10 |
037977 |
|
| Collet (8°) |
12 |
037978 |
|
| Collet (8°) |
6.35 |
679024 |
|
| Collet (8°) |
9.53 |
679025 |
|
| Collet (8°) |
12.7 |
679026 |
|
Spare parts
| BEZ |
ABM
mm |
D
mm |
Clamping range
mm |
DRI |
ID |
|
| Sickle spanner |
34/36 |
|
6 - 13 |
|
005517 |
|
| Collet chuck nut with ball bearing |
M25x1,5 |
35 |
6 - 13 |
RL |
006647 |
|
| Collet chuck nut with ball bearing |
M25x1,5 |
35 |
6 - 13 |
LL |
006648 |
|
For clamping range 6-16 mm, ER 25, DIN ISO 15488
PM 150-0
| BEZ |
for S
mm |
ID |
|
| Collet (8°) |
6 |
037979 |
|
| Collet (8°) |
8 |
037980 |
|
| Collet (8°) |
10 |
037981 |
|
| Collet (8°) |
12 |
037982 |
|
| Collet (8°) |
14 |
037983 |
|
| Collet (8°) |
16 |
037984 |
|
| Collet (8°) |
6.35 |
679027 |
|
| Collet (8°) |
9.53 |
679028 |
|
| Collet (8°) |
12.7 |
679029 |
|
| Collet (8°) |
15.88 |
679030 |
|
Spare parts
| BEZ |
ABM
mm |
D
mm |
Clamping range
mm |
DRI |
ID |
|
| Sickle spanner |
40/42 |
|
6 - 16 |
|
005518 |
|
| Collet chuck nut with ball bearing |
M32x1,5 |
42 |
6 - 16 |
RL |
006649 |
|
| Collet chuck nut with ball bearing |
M32x1,5 |
42 |
6 - 16 |
LL |
006650 |
|
For clamping range 6-20 mm, ER 32, DIN ISO 15488
PM 150-0
| BEZ |
for S
mm |
ID |
|
| Collet (8°) |
6 |
037439 |
|
| Collet (8°) |
8 |
037440 |
|
| Collet (8°) |
10 |
037441 |
|
| Collet (8°) |
12 |
037442 |
|
| Collet (8°) |
13 |
037443 |
|
| Collet (8°) |
14 |
037444 |
|
| Collet (8°) |
16 |
037445 |
|
| Collet (8°) |
18 |
037446 |
|
| Collet (8°) |
20 |
037447 |
|
| Collet (8°) |
6.35 (1/4″) |
037509 |
|
| Collet (8°) |
9.53 (3/8″) |
037510 |
|
| Collet (8°) |
12.7 (1/2″) |
037511 |
|
| Collet (8°) |
15.88 (5/8″) |
037507 |
|
| Collet (8°) |
19.05 (3/4″) |
037506 |
|
Spare parts
| BEZ |
ABM
mm |
D
mm |
Clamping range
mm |
DRI |
ID |
|
| Sickle spanner |
45/50 |
|
|
|
005491 |
|
| Collet chuck nut with ball bearing |
M40x1,5 |
50 |
6 - 20 |
RL |
005718 |
|
| Collet chuck nut with ball bearing |
M40x1,5 |
50 |
6 - 20 |
LL |
006631 |
|
For clamping range 6-26 mm, ER 40, DIN ISO 15488
PM 150-0
| BEZ |
for S
mm |
ID |
|
| Collet (8°) |
6 |
037926 |
|
| Collet (8°) |
8 |
037927 |
|
| Collet (8°) |
10 |
037928 |
|
| Collet (8°) |
12 |
037929 |
|
| Collet (8°) |
14 |
037930 |
|
| Collet (8°) |
16 |
037931 |
|
| Collet (8°) |
20 |
037932 |
|
| Collet (8°) |
25 |
037933 |
|
| Collet (8°) |
30 |
679039 |
|
| Collet (8°) |
6.35 (1/4″) |
037934 |
|
| Collet (8°) |
9.53 (3/8″) |
037935 |
|
| Collet (8°) |
12.7 (1/2″) |
037936 |
|
| Collet (8°) |
15.88 (5/8″) |
037937 |
|
| Collet (8°) |
19.05 (3/4″) |
037938 |
|
| Collet (8°) |
25.4 (1″) |
037939 |
|
Spare parts
| BEZ |
ABM
mm |
D
mm |
Clamping range
mm |
DRI |
ID |
|
| Sickle spanner |
58/62 |
|
6 - 25.4 |
|
005458 |
|
| Collet chuck nut with ball bearing |
M50x1,5 |
63 |
6 - 25.4 |
RL |
006639 |
|
| Collet chuck nut with ball bearing |
M50x1,5 |
63 |
6 - 25.4 |
LL |
006640 |
|
|
|
