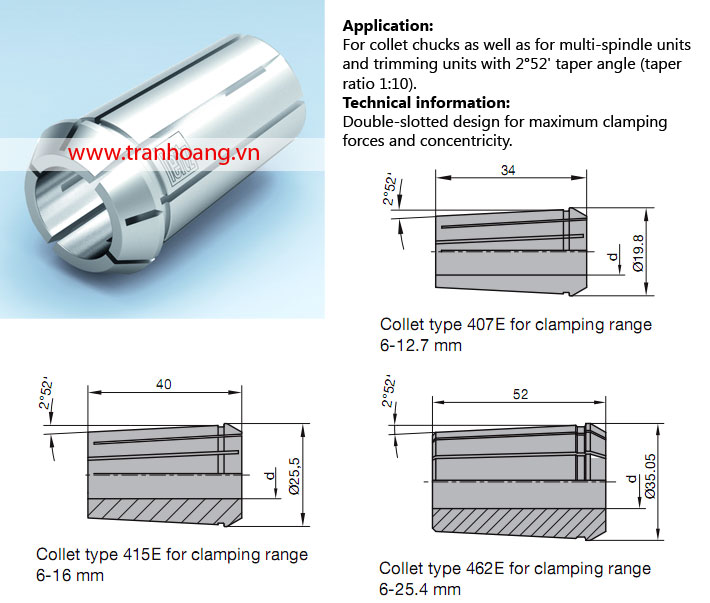

| Collet, DIN ISO 10897, taper ratio 1:10 TH-614-615 |
|
|
| |
| Thông số kỹ thuật: |
For clamping range 6-12.7 mm, type 407E, DIN ISO 10897
PM 150-0
| BEZ |
for S
mm |
ID |
|
| Collet (2°52') |
6 |
679013 |
|
| Collet (2°52') |
7 |
679015 |
|
| Collet (2°52') |
8 |
679016 |
|
| Collet (2°52') |
9 |
679017 |
|
| Collet (2°52') |
10 |
679019 |
|
| Collet (2°52') |
12 |
679020 |
|
| Collet (2°52') |
6.35 (1/4″) |
679014 |
|
| Collet (2°52') |
9.53 (3/8″) |
679018 |
|
| Collet (2°52') |
12.7 (1/2″) |
679021 |
|
Spare parts
| BEZ |
ABM
mm |
D
mm |
Clamping range
mm |
DRI |
ID |
|
| Sickle spanner |
34/36 |
|
6 - 12.7 |
|
005498 |
|
| Collet chuck nut |
M27x1,5 |
35 |
|
RL |
006653 |
|
For clamping range 6-16 mm, type 415E, DIN ISO 10897
PM 150-0
| BEZ |
for S
mm |
ID |
|
| Collet (2°52') |
6 |
679005 |
|
| Collet (2°52') |
8 |
679032 |
|
| Collet (2°52') |
9 |
679033 |
|
| Collet (2°52') |
9.5 |
679034 |
|
| Collet (2°52') |
10 |
679006 |
|
| Collet (2°52') |
11 |
679035 |
|
| Collet (2°52') |
12 |
679036 |
|
| Collet (2°52') |
13 |
679007 |
|
| Collet (2°52') |
14 |
679037 |
|
| Collet (2°52') |
16 |
679008 |
|
| Collet (2°52') |
6.35 (1/4″) |
679009 |
|
| Collet (2°52') |
9.53 (3/8″) |
679010 |
|
| Collet (2°52') |
12.7 (1/2″) |
679011 |
|
| Collet (2°52') |
15.88 (5/8″) |
679012 |
|
Spare parts
| BEZ |
ABM
mm |
D
mm |
Clamping range
mm |
DRI |
ID |
|
| Sickle spanner |
40/42 |
|
6 - 16 |
|
005469 |
|
| Collet chuck nut with ball bearing |
M33x1,5 |
43 |
|
RL |
005685 |
|
For clamping range 6-25.4 mm, type 462E, DIN ISO 10897
PM 150-0
| BEZ |
for S
mm |
ID |
|
| Collet (2° 52') |
6 |
037429 |
|
| Collet (2° 52') |
8 |
037430 |
|
| Collet (2° 52') |
10 |
037431 |
|
| Collet (2° 52') |
12 |
037432 |
|
| Collet (2° 52') |
13 |
037433 |
|
| Collet (2° 52') |
14 |
037434 |
|
| Collet (2° 52') |
16 |
037435 |
|
| Collet (2° 52') |
18 |
037436 |
|
| Collet (2° 52') |
20 |
037437 |
|
| Collet (2° 52') |
25 |
037438 |
|
| Collet (2° 52') |
6.35 (1/4″) |
037495 |
|
| Collet (2° 52') |
9.53 (3/8″) |
037505 |
|
| Collet (2° 52') |
12.7 (1/2″) |
037496 |
|
| Collet (2° 52') |
15.88 (5/8″) |
037502 |
|
| Collet (2° 52') |
19.05 (3/4″) |
037497 |
|
| Collet (2° 52') |
25.4 (1″) |
037508 |
|
Spare parts
| BEZ |
ABM
mm |
D
mm |
Clamping range
mm |
DRI |
ID |
|
| Sickle spanner |
58/62 |
|
6 - 25.4 |
|
005458 |
|
| Collet chuck nut with ball bearing |
M48x2 |
60 |
|
RL |
005714 |
|
| Collet chuck nut with ball bearing |
M48x2 |
60 |
|
LL |
006632 |
|
|
|
