| Drill adaptor, conventional clamping TH-620 |
|
|
| |
| Thông số kỹ thuật: |

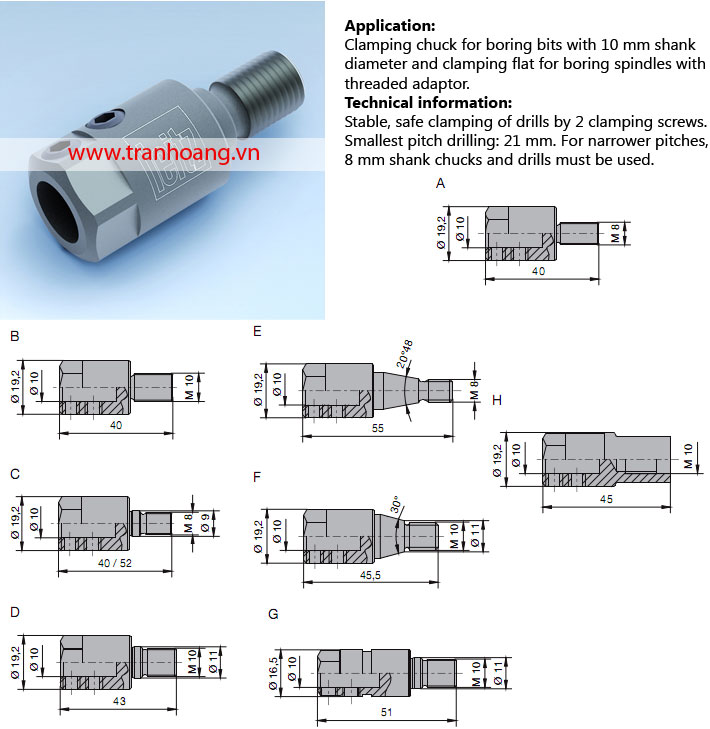

Clamping chuck for drills with 10 mm shank and clamping flat
PM 320-0-28, PM 320-0-29, PM 320-0-30, PM 320-0-32, PM 320-0-34, PM 320-0-40, PM 320-0-42, PM 320-0-46, PM 320-0-50
| Machine |
GL
mm |
Pic. |
ID
LL |
|
ID
RL |
|
| Nottmeyer (old machine type) |
40 |
A |
033088 |
|
033089 |
|
Ayen, Reichenbacher, Holzma, Zubiola, Knoevenagel,
Brandt, Mayer, Torwegge |
40 |
B |
033092 |
|
033093 |
|
| Lehbrink, Nottmeyer (new machine type) |
40 |
C |
033080 |
|
033081 |
|
| Lehbrink, Nottmeyer (new machine type) |
52 |
C |
033082 |
|
033083 |
|
Alberti, Hüllhorst, Reimall, Balestrini, Koch, Weeke,
Biesse, Holz-Her, Goma, Böttcher & Gessner, Busellato,
Torwegge, Grotefeld, Morbidelli Vitab (from YOM 4/91 on) |
43 |
D |
033086 |
|
033087 |
|
Bilek
Knoevenagel |
55 |
E |
033084 |
|
033085 |
|
Balestrini, Alberti, Bilek, Dubus, Goma, Busellato,
Grotefeld, Ompec, Reimall, SCM, Schleicher, Tanzani,
Viciani, Weingärtner, Vitap (up to YOM 4/91) |
45.5 |
F |
033090 |
|
033091 |
|
| Morbidelli |
51 |
G |
033094 |
|
033095 |
|
| Scheer |
45 |
H |
033096 |
|
033097 |
|
Spare parts
| BEZ |
ABM
mm |
ID |
|
| Allen Key |
SW 3 |
005433 |
|
| Allen screw |
M6x5 |
005836 |
|
|
|
